ISO-4210 Frame - Horizontal Force Fatigue Testing Machine

Product Description

ISO-4210 Frame - horizontal Force Fatigue Testing Machine

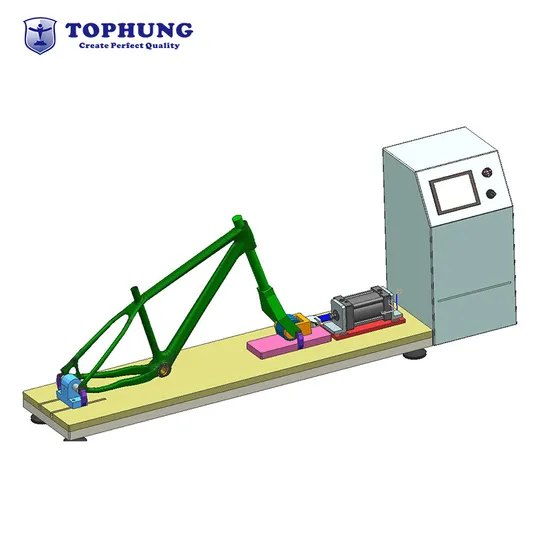

Machine description The ISO-4210 Frame - Horizontal Force fatigue tester is designed to test the horizontal durability of the head tubes of bicycle frames in the production process. In accordance with the ISO 4210 standard, the frame is quickly installed and fixed on the special test fixture with its normal riding posture under the test, installed with the alternate test front fork, and clamped outside the rear flat fork to ensure that the front and rear axle are in a horizontal position. A periodic dynamic force of 1200N forward and 600N backward is applied to the front fork joint horizontally. The design of the testing machine is modular, the specifications and functions meet the requirements of the specification, and the operation is safe and easy.
Main functions 1 The color touch screen LCD+PLC display control, all test conditions are directly input by the LCD touch screen panel;
2 The strength of the test is displayed immediately;
3 PLC program can set the test frequency and test times;
4 The power source adopts 6kg compressed air source, stable operation, low noise;
5 The force adjustment applied before and after the proportional valve is precisely controlled.
Product Description

Model	ISO-4210
Name	Frame and pedal force fatigue testing machine
Maximum power	Within 2000N, the compressed air pressure can be adjusted according to the test requirements
Force load cell	High precision 2000N load unit
Control mode	Touch screen +PLC control
Power display accuracy	+/-1%
Test speed	1-3 times/second, can be set digitally
Counting digits	0-999999 times
Table area	300×1500mm (width × length)
Machine power supply	Three-phase 220, 50/60 or specified
Appearance size	1500×300×300 mm (W×D×H)
Machine weight	About 150Kg
