CNC Automatic Woodworking Cutting and Engraving Drilling 3D Carving Lathe
| US$9,800.00-15,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-1530-4T
Voltage
380V
Tool Holder
Double-tool Holder CNC Lathe
Automatic Grade
Automatic
Precision
High Precision
Setting Mode
Floor-type
Controlling Mode
CNC
Power Source
Electric
Processing Accessory
Chuck CNC Lathe
Certification
ISO
After-sales Service
24 Hours Online
Working Area
1500mm*3000mm
Motor
4kw Pure Servo-Operated High-Speed Rotary Motor
Spindle
3.5kw High-Speed Air-Cooled Spindle (Four-Axis, Fo
Motor Speed
6000r/Min
Turning Tool
Double Knife (Using High-Hardness Alloy V-Type Kni
Grinding Wheel
370W Three-Phase Asynchronous Motor, Independent C
Transport Package
Plywood Box
Specification
1500mm*3000mm
Trademark
DLM
Origin
China
HS Code
84609090
Product Description
CNC Woodworking LatheSpecification
| 1530 Automatic loading and unloading four switch CNC woodworking lathe milling compound machining center 1530-4T | |||
| Specification: | |||
| Working area | 1500*300mm | Transmission mode | XY Axis: 25TBI ball screw,Z Axis: high-precision grinding helical racks |
| Machine body | Heavy-duty integral full-cast bed body, independent control cabinet | Rail | Taiwan HIWIN 25mm linear rail |
| Motor | 4KW Pure servo-operated high-speed rotary motor | Machine cable | pure copper cable |
| Spindle | 3.5KW High-speed air-cooled spindle (four-axis, four-linkage) | Engraving code | G code,u00,mmg,plt |
| Motor speed | 6000r/min | Loading & unloading system | Multi-linkage cylinder feeding frame (simple and easy to use) |
| Turning tool | Double knife (using high-hardness alloy V-type knife) | Security system | XYZ Three axis all photoelectric limit |
| Planer tool | 2.2KW Three-phase asynchronous motor (independent blade using 30 large blades) | Repeat positioning accuracy | ±0.02mm |
| Grinding wheel | 370W Three-phase asynchronous motor, independent control of the grinding wheel | Machine weight | 1900kg |
| Driving mode | YAKO drive | Machine size | 3550*2350*1650mm |
| Inverter | BEST /Pure servo-drive frequency conversion | Tool box | Turning tool, wrench, tube holder, hand wheel, thimble, clip holder, oil pot, oil and water separator, etc. |
| Spindle speed | 0-18000r/min | ||
| Clamp collects | 3.175mm,4mm,6mm,,12.7mm etc. | ||
| Control system | CNC special control system 1000TC | ||
| Oil lubrication system | Automatic oil lubrication system | ||
| Working voltage | AC380V 50/60Hz | ||
| Compatible software | Artcam,type3,CAD drawing,CDR,Jingdiao,Wentai, etc. | ||

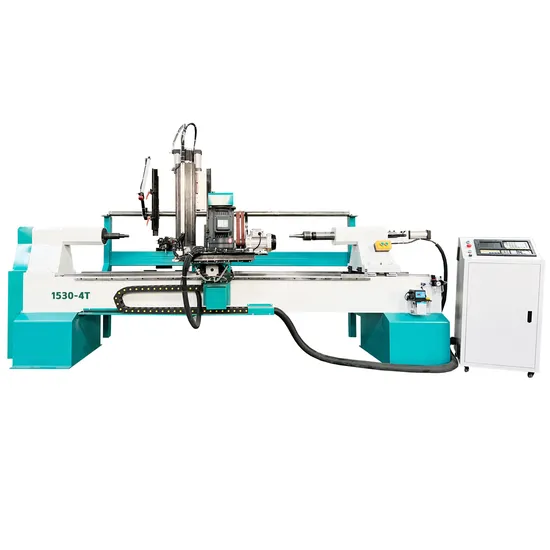

Machine details
Package: plywood box
