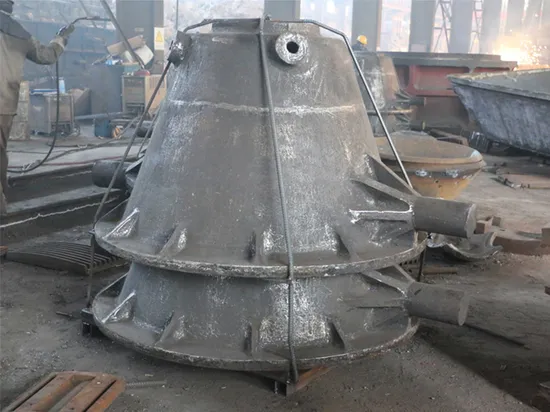

Cast Slag Pot for Ferrochrome Stainless Steel Pot

Product Description

cast slag pot for FERROCHROME stainless steel pot
-Carbon steel/Low Alloy Steel/Grey Iron/S. G Iron
-Design and manufacture as per your requirement
-high quality
Cinder pot:
We can produce a wide range of Metallurgy Cinder pot(Steel Castings/Iron Castings), with good quality and fast delivery at best price. The materials used comply with ASTM, DIN, BS, JIS, NF etc. Standard. Those casting cinder pot can be supplied in the following conditions:
Heat treatment: Normalized, Normalized and Tempered, Quenched and Tempered
Machining: Rough machined, Semi-finished machined, Finished machined
Non-Destructive Testing: Magnetic Particle Testing, Ultrasonic Testing, Penetrant Testing
1. Material
Cast Steels with differing chemical compositions but defined mechanical properties play a dominant role in the manufacture of slag pots. Standard specifications of Cast Steel for slag pots may be found here
Standard Specifications for Cast Steel
CountrySpecification Grade
United KingdomBS 3100: 1991425-A2
USAASTM A 2760-30
GermanyDIN 17182GS-16Mn5
JapanJIS G7821: 2000SC42
InternationalISO 3755: 1991
2. The mechanical properties for Cast Steel slag pots are given below
USAEurope
Tensile strengthpsi>60000>65000
MPa>414>448
Yield strengthpsi>30000>35000
MPa>207>241
Elongation%>24, 0>35, 0
Reduction of area%>35, 0>40, 0
3. Delivery condition: Normalised
Note regarding the material selection: Due to obvious advantages in terms of service life and maintenance
Cost-efficiency, cast steel has been becoming more significant in the slag pot construction over the last
Years versus both materials, spheroidal cast-iron and lamellar graphite cast-iron. In contrast to other
Materials, cast steel offers excellent repair possibilities as it is well-suited to welding.
4. Quality assurance
The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000.
The standard documentation ensures the full traceability of every process step:
Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition,
Mechanical properties and non-destructive examination;
Dimensional check supported with a "as-built" sketch;
Record of the quality heat treatment;
Any enquiries, please do not hesitate to contact us, and welcome your drawing and OEM requirements
