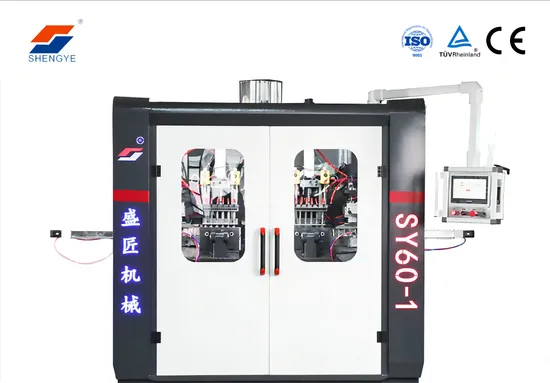

PVC Blow Molding Machine
| US$42,800.00-42,900.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
SY-60-1
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Avilable
Type of Shipping
Sea Transportation
Transaction Mode
Fob
Transport Package
Wooden Packing
Specification
4000MM*3500MM*2500MM
Trademark
SJ
Origin
China
HS Code
8477109000
Product Description
This equipment is full electric servo control, the equipment has 9 servo motors to separately control each action of the equipment, the equipment closing structure adopts armless mode to better protect the safety of the operator during commissioning, and the output of enema bottle products is 110,000 in 24 hours.
| Code | SYJII-SF-75-6 |
| Max Product Volume | 5L |
| Output | 90pc/h |
| Machine Size | 3800mm*2200mm*2200mm |
| Weight | 6000KGS |
| Voltage&Frequency | Clients' Specified |
| screw Diameter | 75mm |
| L/D Ratio | 1:25 |
| Die Head Qty | 6pcs |
| Max Center Distance of Die Head | / |
| Extrusion Motor Power | 18.5-22KW |
| Total Power | 55KW |
| Average Energy Consumption | 38kw |
| Extruder heating power | 12kw |
| Number of hating zone | 4 |
| Oil pump drive power | 7.5KW |
| Max plasticizing capacity | 75kg/h |
| Platen Size | 420mm*400mm |
| Max mould size | 550mm*380mm*220mm |
| Clamping force | 90KN |
| Opening Stroke | 200mm-250mm |
| Moving Stroke | 600mm |
| Cooling water pressure | 0.3MPa |
| Water consumption | 60L/min |
| Air pressure | 0.6Mpa |
| Air consumption | 0.6centiare/min |
