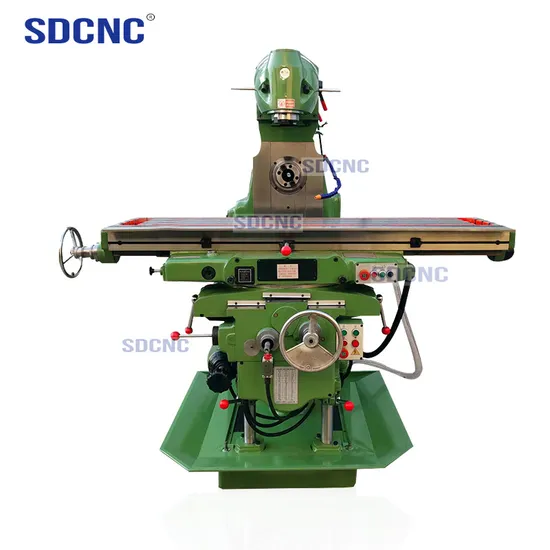

Universal X6240 High Quality Universal Rotary Head Milling Machine Three-Dro
| US$10,200.00-12,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6240
Type
Knee-and-Column Milling Machine
Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Spindle Speed Range
35~1600(V) 35~1500(H)
Max.Worktable Travel
1000*300*420
Worktable X,Y,Z Axis Servo Motor Power
2.4kw
Coolant Pump Motor Power
0.09kw
Main Motor Power
4(Vertical) 7.5(Horizontal))
Transport Package
Wood Packaging
Specification
2080*2360*2050
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2080.00cm * 2360.00cm * 2050.00cm
Package Gross Weight
3700.000kg
Product Description
UNIVERSAL MILLING MACHINE FEATURES:1.The vertical spindle has two main components.The angel of two rotation axis is 45 degree. We can adjust the milling head to
any space angle by rotating two main components, processing more conveniently.2.Horizontal spindle adopts three-support structure, increasing spindle rigidity, and dynamic braking system with large torque,
quickly stop and reliability.3.X,Y,Z axis of worktable can be both manual and motorized feed, and rapid feeding with high efficiency.4.X axis travel is 1000mm, which expands the process range. X,Y,Z axis guidways adopt harden and grinding, high accuracy and
long life.5.The transmission gear use several lubrication forms like centralized lubrication, oil-immersed lubrication, hand-operate lubrication,
oil cup fixed-point lubrication, which have good effect with low noise.6.The structure has so good rigidity that it can bear heavy cutting work load. And it uses carbide cutting tools to make high speed
cutting.
SPECIFICATIONS
| SPECIFICATION | UNIT | X6240 |
| Spindle taper | ISO50(vertical,horizontal) | |
| Distance from vertical spindle to table | mm | 200~620 |
| Distance from vertical spindle to column | mm | 400-1000 |
| Distance from horizontal spindle to table | mm | 0~420 |
| Spindle speed range | rpm | 35~1600(V) 35~1500(H) |
| Worktable size | mm | 1600*400 |
| T-slot of table (No./Width/Distance) | 5/18/70 | |
| Distance from horizontal spindle to arm | mm | 210 |
| Max.worktable travel | mm | 1000×300×420 |
| Worktable X,Y axis power feed | mm/min | 40~1000 rapid1800 |
| Worktable Z axis power feed | mm/min | 10~250 rapid450 |
| Main motor power | kw | 4(vertical) 7.5(horizontal)) |
| Worktable X,Y,Z axis servo motor power | kw | 2.4 |
| Coolant pump motor power | KW | 0.09 |
| Flowing of coolant pump | 1/min | 25 |
| N.W./G.W. | KG | 3500/3700 |
| Overall dimensions (LxWxH) | mm | 2080×2360×2050 |
