Automatic Pneumatic Spin Orbital Riveting Machine

Product Description

Hot Press Riveting Machine Light Hydraulic Rivet Machine Product Description
Main Features

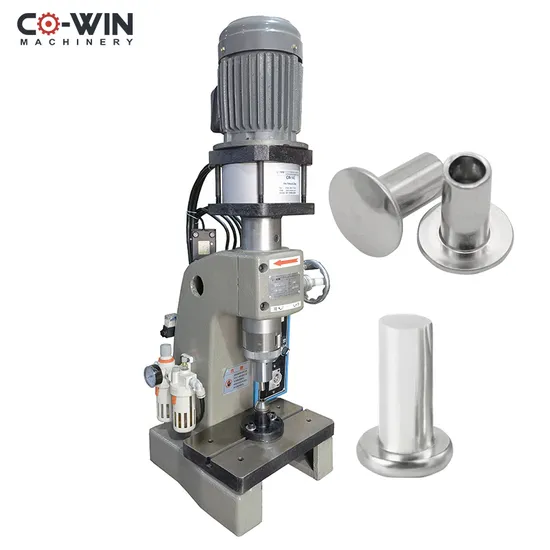

Bench Type Pneumatic Orbital Riveting Machine is a standard orbital riveting machine, which driven by pneumatic air, designed as workbench type. This model of rivet machine is specializing in riveting solid rivets with iron or steel.
The maximum capacity is solid rivets with diameter 8mm.
1.This is the latest forming and fastening process which instead of spinning, hammering, pressing, welding, upsetting, the riveting result is a very smooth surface on metal, it will increase much production and save power.
2.Increase much production and save labor cost. Rivet will be processed within 0.5 seconds.
3. The good quality of all units on this machine ensures the smooth surface of work piece and stability of processing
4.The double air regulators can be used to control riveting speed effectively.
5. The air pipe was equipped the with the air filter for preventing moisture
6.Acceptable for hollow rivets, semi-tubular rivets, solid rivets.
7.Easy operation. Workers operate the machine by stepping foot pedal.
8.Vertical Type, workbench designing, to make worker relax and comfortable.

Model	CW-141	CW-143
Max. Capacity	Φ7(Solid core) ~Φ12(hollow)	Φ8(Solid core) ~Φ15(hollow)
Riveting Press	800kg	1100kg
Stroke	35mm	35mm
Throat Depth	120mm	130mm
Air Source	2~7bar	2~7bar
Power	370w	750w
Weight	125kg	180kg

Detailed Photos
Riveting head
Adjustable stroke, good sealing,
precision bearing riveting firm

Intelligent controller
Adopt brand electric components, compact layout, stable quality

Pneumatic system
Simple operation, stable pressure adjustment, convenient

Application
Light industries such as Blender mixing knife, Brake pad riveting, baby stroller, etc.
