Ultrasonic Sewing Machine for Medical Gown
| US$1,200.00-1,600.00 | 1 set (MOQ) |
Basic Info.
Model NO.
MS-50S
Condition
New
Certification
CE
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Drive
Electric
Thread Number
1PC Pattern Roller
Needle Number
1PC Pattern Roller
Stitch Type
Pattern Roller
Voltage Supply
1p/AC 220V/50Hz
Installed Power
1500W
Ultrasonic Frequency
20kHz
Working Speed
16m/Min, Adjustable Depend on Fabric Thickness
Net Weight
110kgs
Gross Weight
140kgs
Packing Size
1250*605*1300 (mm)
Workable Materials
Polyester, Nylon and Non-Woven Fabrics.
Usages
Used for Sewing, Welding for Polyester and Non-Wov
Transport Package
Wooden Case
Specification
MS-50S
Trademark
MosunSonic
Origin
Made in China
HS Code
84479090
Production Capacity
15m/Min with More Than 12 Hours Per Day
Product Description
Ultrasonic Sewing Machine for medical gownModel: MS-50S
1. Characteristics
| Good Name: | Ultrasonic lace sewing machine |
| Model: | MS-50S |
| Voltage Supply: | 1P/AC 220V/50Hz , AC 110V available. |
| Installed Power: | 1500W (actual consumption power: 1500W*60%=900W) |
| Ultrasonic Frequency: | 20KHz |
| Working Speed: | 0-16m/min, adjustable as per fabric thickness. |
| Max. Pattern Width: | Within 10mm |
| Roller Sizes: | 10MMxØ51MM |
| Materials Suitable: | Polyester, nylon and non-woven fabrics. |
| Usages: | Used for sewing, welding for polyester and non-woven fabrics. |
| Packing Size: | L (125cm)x W(60cm)x H(130cm) |
| Gross Weight: | 140KGS |
2. Basic components:
1. New type intellectual ultrasonic generator
2. Built-upper ultrasonic transducer
3. Pneumatic welding head lifting system
4. Rolling mould adjusting structure and arranging system
5. Special framework design with multi practical functions.
6. Speed modulating system with single circuit motor
3. Characteristics:
1. Applied to the non-pin seam of chemical fiber fabrics, non-woven fabrics, thermo-melt fabrics, taking the place of sewing or down-press type welding, limitless continuous welding function, with solid weld, beautiful and high work efficiency.
2. Multi-functional framework system with the application of straight line seam, turn seam and cylinder joining.

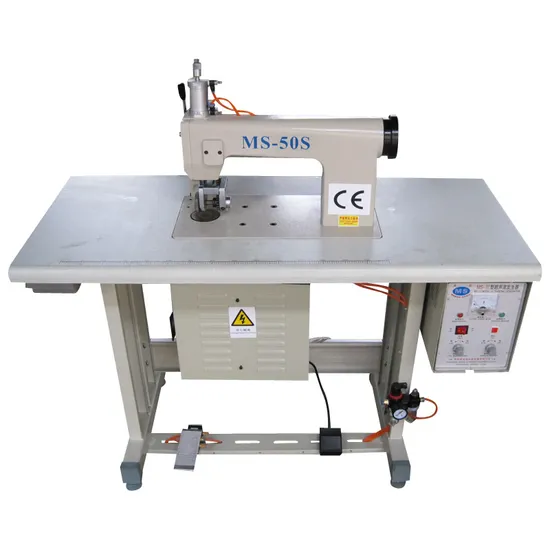

4. Machine picture and samples
