US$1,008.00-1,512.00 | 1 set (MOQ) |

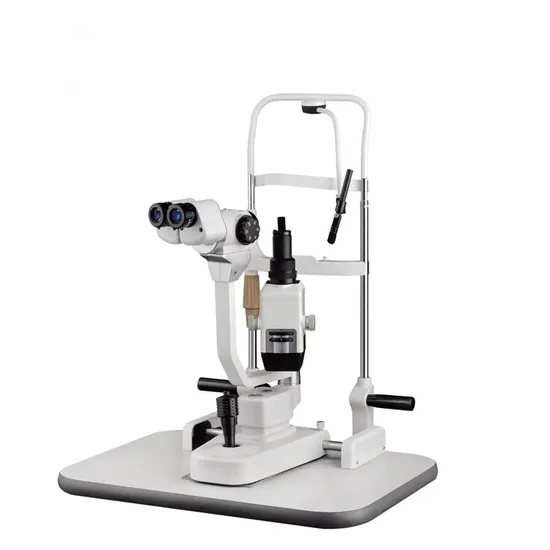

Property of slit lamp | Microscope Type | Galilean stereoscopic microscope |
Magnification selection | 5 steps by drum rotation | |
Eyepiece | 12.5x | |
Magnification Ratio (Field of view ) | 6×(φ33mm),10×(φ22.5),16×(φ14mm), 25×(φ8.8mm),40×(φ5.5mm)/6AT(10x , 16x , 25x ) | |
PD adjustment | 52mm ~ 80mm | |
Diopter Adjustment | +5D ~ -5D | |
Base | Left and ritht move | 110mm |
Dolly move | 90mm | |
Up and down move | 30mm | |
Chin rest | Up and down move | 80mm |
Fixation lamp | red LED | |
Property of illumination | Slit width | 0 ~ 14mm continuous (at 14mm,slit becomes a circle) |
Slit height | 1 ~ 14mm continuous | |
Slit angle Light spot diameter | 0 ~ 1800 continuous 14mm ,10mm, 5mm , 3mm ,2mm ,1mm ,0.2mm ,1mm1-14mm continuous | |
Filter | Heat absorption ,Grey ,Red-Free ,Cobalt Blue | |
Illumination bulb | 12V 50W halogen lamp | |
Power | Input voltage frequency Power consuption | 220V 50H 68VA |
Weight and size | G.W N.W | 18kg 16kg |
Main dimension | 550mm(L)× 430mm(W)× 780mm(H) |
