High Quality ONU WiFi 6 ONU Fiber Router 4ge LAN 2.4G/5g WiFi 6 ONU Ax1800Mbps F6600

Product Description

High Quality ONU WiFi 6 ONU Fiber Router 4GE LAN 2.4G/5G WIFI 6 ONU AX1800Mbps F6600
Product Features: Compatibility: Supports most popular OLTs, including ZTE, Huawei, Fiberhome, and Nokia. Protocol Standards: Compliant with H.248, MGCP, and SIP protocols. Wireless Standards: Adheres to 802.11 n/b/g/ac/ax standards. Ethernet Capabilities: Supports Ethernet business layer 2 switching and line speed forwarding. Frame Filtering: Includes frame filtering and suppression support. VLAN Functionality: Supports standard 802.1Q VLAN features and VLAN conversion. VLAN Support: Capable of supporting up to 4,094 VLANs. Bandwidth Allocation: Includes dynamic bandwidth allocation functionality. Service Support: Compatible with PPPOE, IPOE, and Bridge services. QoS Features: Supports QoS, including traffic classification, priority marking, queuing, scheduling, flow shaping, and traffic control. IGMP Support: Includes IGMP Proxy and IGMP Snooping. Ethernet Port Features: Supports speed limiting, loop detection, and layer 2 isolation. Power Failure Alarm: Includes power failure alarm functionality. Technical Specifications: Chipset: AX1800 Dual Band WiFi Memory: 4GB DDR RAM Storage: 2GB Flash Interfaces: Fiber: 1 SC/UPC fiber port Ethernet: 4 x 10/100/1000M adaptive ports Telephone: 1 telephone port Wireless: WiFi with 2 external 5dBi antennas 2.4GHz: up to 573Mbps 5.8GHz: up to 1201Mbps USB: 2 USB ports Compliance: IEEE 802.11a/g/n/ac/ax Additional Features: Remote Management: Supports remote reset and restart. Factory Reset: Allows recovery of factory settings. Data Encryption: Includes support for data encryption. Status Detection: Supports status detection and fault reporting. Power Protection: Includes power protection features. Port Details: PON: Connects to OLT device via optical fiber. Ethernet: Connects to user equipment via twisted pair, with adaptive rates of 10/100/1000M. Telephone Port: Connects to user equipment via telephone line. Reset Button: Restarts the device; holding for over 3 seconds restores factory defaults. WiFi Button: Toggles WiFi on/off. WPS Button: Simplifies security and network management. LED Button: Turns LED indicators on/off. Power Switch: Powers the device on/off. Power Interface: Connects to external power supply. Optical Characteristics: Transmission: Supports wave division multiplexing technology for single fiber bidirectional transmission. Interface Type: SC/UPC Spectroscopic Ratio: Maximum of 1:128 Data Rate: 1.25Gbps, 2.5Gbps Transmit Wavelength: 1310 nm Receive Wavelength: 1490 nm Optical Power Output: -1 to +4 dBm Sensitivity: < -27 dBm Max Distance: Supports up to 20 km between OLT and ONU. Specification: Power Supply: 12V/1.5A Operating Temperature: -10°C to 60°C Storage Temperature: -20°C to 80°C
Feature Description

GPON Technology	Gigabit Passive Optical Network technology for high-speed internet access over fiber optic cables.
WiFi Standard	WiFi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac.
Dual-Band Support	Operates on both 2.4 GHz and 5 GHz frequency bands.
Downstream Data Rate	Up to 2.5 Gbps
Upstream Data Rate	Up to 1.25 Gbps
Antenna Configuration	4x4 MU-MIMO for both 2.4 GHz and 5 GHz bands.
Ethernet Ports	4 Gigabit Ethernet ports
USB Ports	1 or 2 USB 3.0 ports
Security	WPA3, WPA2, WPS support
Operating Temperature	0°C to 40°C
Power Supply	12V/2A
Home Networking	Suitable for households with multiple users and devices requiring high-speed internet.
Small Business Use	Ideal for small businesses needing reliable internet connectivity for operations.
Streaming and Gaming	Provides the necessary bandwidth and low latency for HD streaming and online gaming.
Setup and Configuration	Connect to fiber network, power up, connect to router, configure WiFi, and connect devices.

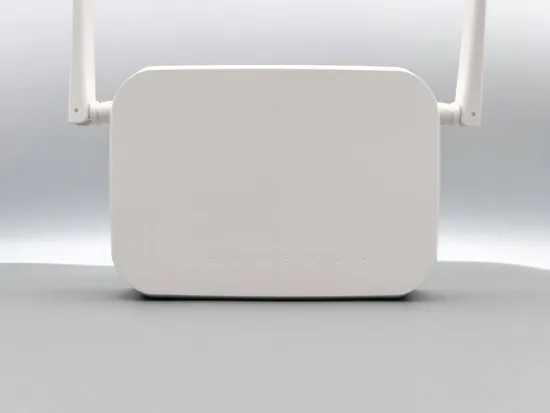

Product Picture:
FAQ:
Q: What types of OLTs are compatible with your ONT devices?
A: Our ONT devices support most popular OLTs, including those from ZTE, Huawei, Fiberhome, and Nokia, ensuring wide compatibility and ease of integration.
Q: What wireless standards do your ONTs support?
A: Our ONTs comply with IEEE 802.11a/b/g/n/ac/ax standards, providing robust and high-speed wireless connectivity.
Q: How do I reset my ONT to factory settings?
A: To reset your ONT to factory settings, press and hold the reset button for more than 3 seconds. This will restart the device and restore the default factory parameters.
Q: What should I do if my ONT experiences a power failure?
A: Our ONTs are equipped with a power failure alarm feature. Ensure your power supply is stable and check the power interface connection. If the problem persists, contact our technical support team for assistance.
Q: Can I manage the ONT remotely?
A: Yes, our ONTs support remote reset and restart functions, allowing for convenient remote management and troubleshooting.
Q: How can I become an authorized distributor or reseller?
A: If you're interested in becoming an authorized distributor or reseller, please contact our sales team. We offer competitive terms and support to help you succeed as an ONT supplier.
Q: What kind of warranty do you offer on your ONT devices?
A: We provide a standard one-year warranty on all our ONT devices. Extended warranty options are available upon request. For more details, please refer to our warranty policy or contact our customer service team.
Q: Are your ONT devices available for bulk purchase?
A: Yes, we offer bulk purchasing options for ISPs, importers, and online companies. Please contact our sales department for pricing and availability.
Q: Do your ONTs support QoS (Quality of Service) features?
A: Yes, our ONTs support QoS features including traffic classification, priority marking, queuing, scheduling, flow shaping, and traffic control, ensuring optimal performance for various applications.
Q: What is the maximum distance your ONTs support between OLT and ONU?
A: Our ONTs support a maximum distance of up to 20 km between the OLT and ONU, making them suitable for various deployment scenarios.
