Rubber Granules Powder Making Machine Waste Tyre Recycling Machine

Product Description

emi-Automatic Production Line Process: Waste tire---Tire circle cutting---Rims separating---Tire strip cutting---Tire slice cutting---Rubber crushing --- Magnetic separating ---Rubber powder
Advantage:
High automation, few operators
Reduce the production price efficiently
Without pollution, stable equipment performance
Tire recycling machine a new hot highly profitable green project, which can convert waste tires/rubber/plastic to treasure
Steel Tyre: 76% rubber powders, 17% steel wire, and 5% or less dust;

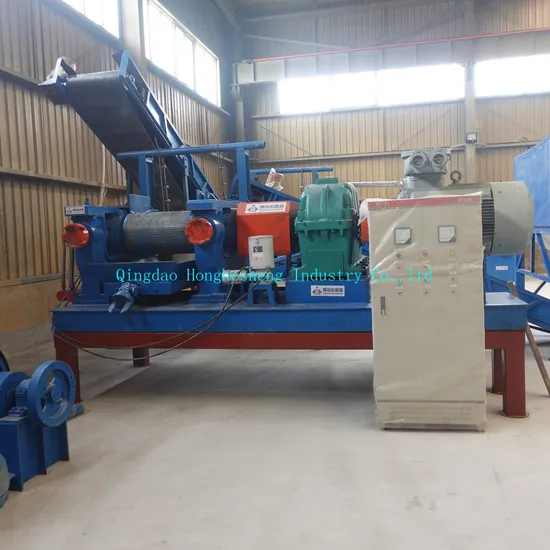

Nylon Tire: 76% rubber, 11% fiber, 6% steel wire and 5% or less dust Main Technical Details: The most important machine of this line is Rubber Cracker Mill, For this machine, we have three kinds of Model XKP-400/450/560/610. For producing 0-30mesh rubber powder, the separate capacity are as below: XKP-400 line: 300kg per hour. XKP-450 line: 350kg per hour. XKP-560 line: 500kg per hour. XKP-610 line: 800kg per hour.

Type	XKP-560	XKP-610	XKP-680	XKP-710
Grooved roller dia.	560mm	610mm	680mm	710mm
Smooth roller dia.	510mm	560mm	610mm	610mm
Working length of rollers	800mm	1000mm	1000mm	1100mm
Motor power	132KW/160KW	185KW/200KW	250KW	280KW
Speed reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer	Double circular arc gear reducer /ZSY series hardened teeth reducer
Roller support type	Bearings	Bearings	Bearings	Bearings
Lubricating method	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating	Grease pump automatic lubricating
Machine weight	Around 20 ton	Around 25ton	Around 30ton	Around 32ton
Production capacity(24mesh)	Around 900kg/h	Around 1000kg-1300kg/h	Around 1200-1500kg/h	Around 1300-1600kg/h
