Inclined Electric Wheelchair Platform Home Stair Lifts for Disabled People and The Elder
| US$2,500.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
X-500L
Driving Type
Hydraulic Type or Screw Type
Capacity
250kg
Persons
Customized
Speed
70mm/S
Control Mode
Customized
Position of Computer Room
Without Computer Room
Elevator Door
Customized
Door Knife
Customized
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Color
Customized
Lifting Height
1m-10m
Production Date
30 Days After Receiving Customers′ Deposite
Certifications
CE, ISO
Operation Mode
Electric
Features
Safe, Quiet
Transport Package
Export Wooden Box Packaging
Specification
Customized
Trademark
Aplus
Origin
China
HS Code
8428909090
Production Capacity
10000sets Per Month
Product Description

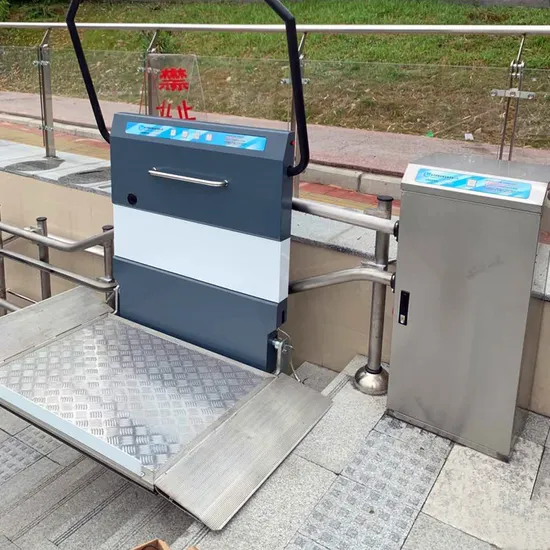

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.Inclined wheelchair lifts from APLUS can carry a passenger with wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.
Main technical parameters of the platform:
| Standard Manned Platform Dimensions | 1100MM×800MM |
| Loading | 250KG |
| Speed | 0~7M/MIN |
| Slow down when leaving or reaching a landing | |
| Drive System | 1.5KW-VVVF compact drive system |
| Guide | The independent drive system is integrated with the track, and the guide rail and column are made of stainless steel |
| Power | AC 220/380V 50Hz-60Hz,15A |
| communication | carrier communication |
| Manned platform operating system control | Non-locking constant voltage directional button switch, DC24V, equipped with emergency stop switch |
| Call station operation control | Unlocked constant voltage platform running direction switch; manned platform receiving and releasing constant voltage switch; power lock, DC24V |
| surface coating | Durable electrostatic spray and paint, sea gray paint, stainless steel sanding and standard colors can be freely selected |
| curved safety arm | Fully automatic safety arm mounted 880mm above the platform |
| pedestrian safety warning light | Installed on the front and rear ends of the platform floor, amber light-emitting lamps |
| Overspeed Safety Device | Mounted on the bottom of the rail, with mechanical overspeed sensor and brake, electronically driven circuit breaker |
| Stop at an obstacle | Safety sensor panels on the bottom and ramps of the manned platform can detect obstacles and stop the platform in case of obstacles |
| Manual toggle key | The platform can be lowered manually and the manned platform can be folded in an emergency |
| Drive System | Sheave chain drive system |
| guidance system | Modular track system |
| Control System | PLC |
| Overload protection | Overcurrent Relay Control |
| Guard form | Flip plate (installation on three sides, automatic on both sides) |
| emergency stop | Press the emergency button switch to control the machine operation |
| safety interlock | The platform cannot be used abnormally, and the security protection is not in place and cannot be run. |
| safety touch panel | When the safety touch panel encounters an obstacle during operation, the operation will stop immediately |
| Power off control | When there is no power or failure, manual control to retract the platform |
| safety rocker | cocked when rising |
| Perceptual face and perceptual edge | Bottom, main, and side safety sensors to sense obstacles |
| speed limit control | Intelligent frequency conversion control, start low speed, straight line acceleration, turning deceleration |
| security key | Dedicated key control, dedicated personnel |
| traction method | Sheave chain drive and slotted for upper rail. |
| safety protection system | Independent safety protection system |
| Powertrain | independent |
| operate | Independent operation key to turn on the voltage stabilizer switch in the platform control cabinet and the landing switch of the call station |
| By position, parked position | low |
| Pause button | Pause buttons and pedestrian safety warning lights are provided at each stop of the equipment and on the platform |
| Manual control system | The manned platform can be lowered and folded manually in an emergency |
| alarm system | Equipped with emergency call help button, different sound alarms in different situations |
| Exterior color | Silver/Customer can choose |
| End station indicator | Equipped with running, maintenance and platform running lights |
Platform part:
| Platform load | 250 kg | Platform weight | ≈75 kg |
| Operating surface size | 1040mm*1170mm | Platform manned size | 1100mm*800mm |
| Side flap size | 840mm*240mm | Side flap angle | ≈60° |
| Guardrail height | 1000mm | button height | 1125mm |
| Folded thickness | <350mm | Folding speed | <30s |
| Internal voltage | Maximum DC 29.6V safe voltage | Battery capacity | 7AH*2 |
| battery life | Theoretical times of use without charging and uninterrupted use: 30 times | ||
| Material selection | The device has the ability to prevent dust, rust, moisture, mildew, shock and electromagnetic interference and anti-static. | ||
Platform material and craft table:
| platform shell | Stainless steel | platform pedal | Aluminum alloy profile + aluminum plate spray |
| Operation panel | Electroplated acrylic | Action button | Stainless steel brushed |
| Automatic guardrail | Stainless steel brushed | floor | Aluminum spray./PCV anti-skid |
The inclined wheelchair lifting platform is a barrier-free safety device installed in the corridor system that uses motor traction to move up and down along the track and carry passengers. It consists of drive system, guide rail, sheave chain, mobile platform, etc. It is a special equipment used in the building corridor system for people who are wheelchair or difficult to climb stairs. It is mainly composed of main drive system, auxiliary drive system, main control system and safety system.
