4 Colors Water Based Ink Flexo Printing Machine for Paper PE BOPP

Product Description

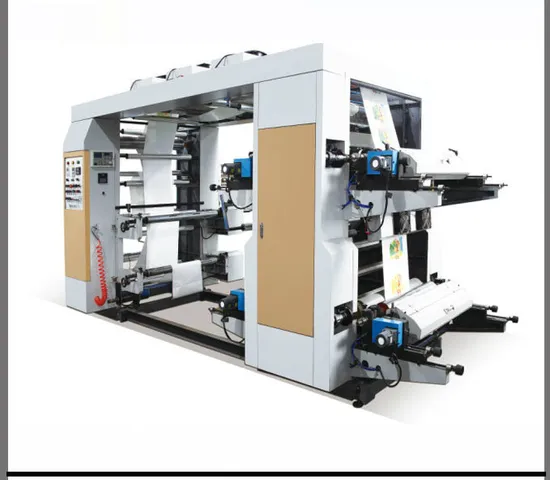

Product Description 4 Colors Water Based Ink Printing Machine for Paper Roll(DC-YT41000)
Application
Flexo printing machine is used resin plate for printing texts and images on paper roll,plastic film roll,non woven roll,thermal paper roll etc. Both of water based ink and solvent ink are ok to use.
Features:
Speed and Efficiency: Flexo machines are designed for high-speed production, making them perfect for large runs. They can churn out vast quantities of printed material in a short amount of time. Versatility: These machines can print on almost any substrate, including paper, plastic, metallic films, and more. This adaptability makes flexo printing a go-to method for packaging materials across various sectors. High-Quality Output: Modern flexo presses are capable of producing high-resolution images and fine text, rivaling the quality of gravure and offset printing. Environmental Friendliness: With advancements in ink technology, flexo printing has become more environmentally friendly. Water-based and UV-curable inks reduce VOC emissions, making the process greener. Applications Flexo printing's wide range of applications can be seen in:
Packaging: The largest market for flexo printing, including food and beverage packaging, pharmaceuticals, and cosmetic products. Labels and Stickers: From product labels to decorative stickers, flexo printing is used for its durability and quality. Wallpapers and Floorings: The ability to print on large rolls of material makes flexo ideal for producing wallpapers and flooring materials. Newspapers and Catalogs: Though declining, flexo printing is still used for some types of newspapers and catalogs, especially those requiring high-quality color prints. Main Machine Features 1.Easy operation, flexible starting, accurate color register.
2.The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pnuematic operation printing cylinder lift and lower, is will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Automatic Edge Position Control system, can correct deviation of material, ensure material in right place.
10. Automatic Magnetic Powder Tension control system, can let film in a condition of a settled suitable tension, insure the high quality of finished roll.
11.use air shaft

Main Technical

Type	YT-4600	YT-4800	YT-41000
Max. Web Width	600mm	800mm	1000mm
Max. Effective Printing Width	560mm	760mm	960mm
Range of Repeat Printing Length	191~914mm	191~914mm	191~914mm
Max. Diameter of Roll Material	450mm	450mm	450mm
Printing Speed	5~50m/min	5~50m/min	5~50m/min
Plate Thickness(Both side adhesive tape included)	2.38mm	2.38mm	2.38mm
Total Power	8Kw	10Kw	13Kw
Overall Dimension	2300×1860×2145mm	2300×2060×2145mm	2300×2760×2145mm
