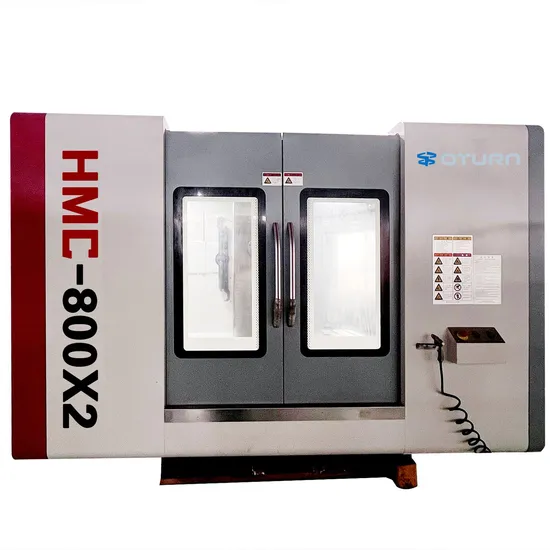

Oturn CNC Milling Machine Hmc800X2 CNC Horizontal Machining Center for Sale

Product Description

Product Description
Horizontal machining centers are widely used in the processing of high-precision parts, especially suitable for the processing of IT components, auto parts, optical instruments, medical equipment, pneumatic components, aviation and aerospace parts, molds, etc. This machine tool is mainly used for milling, and is suitable for drilling, tapping, reaming, reaming, boring and continuous milling of parts.
Product Parameters

Item		HMC- 800 * 2
Worktable	Worktable size	800 *800mm
	Number of worktables	2
	Worktable indexing	1°/0.001 °
	Max. load of worktable	1500Kg
	Form of work surface (T-slot)	5*22*160mm
	Max. workpiece rotation diameter	Ø 1200mm
3 axis travel	Move the worktable left and right (X direction)	1100mm
	Spindle box moves up and down (Y direction)	850mm
	The column moves forward and backward (Z direction)	900mm
Spindle parameters	Spindle speed	6000
	spindle taper	BT50
	Spindle power	18.5/220Nm
	Distance from spindle centerline to worktable	100- 950mm
	Distance from spindle end face to worktable center	180~1080mm
Tool magazine	Tool magazine capacity BT-50	40 PCS
	Max. tool size (diameter × length)	125×350 light tool 500 mm
		(No tool adjacent) 245×300
	Max. tool weight	25kg
	Tool change time	2.6s
Three-axis linear rail specifications	X-direction, Y-direction, Z-direction heavy-duty roller guide rails	X,Y Z 55mm
Three-axis screw specifications	X direction, Y direction, Z direction (diameter × lead)	X/Y/ Z/50*12
Rapid traverse speed	X direction, Y direction, Z direction	24m/min
	B axis	10r/min
Cutting feed rate	X direction, Y direction, Z direction	1-10000mm/min
Positioning accuracy	X direction, Y direction, Z direction	0.012(full travel)
	B axis	12″
Repeat positioning precision	X direction, Y direction, Z direction	0.008((full travel)
	B axis	6″
CNC system	X direction servo motor	BiS40/2000
	Y direction servo motor (brake alarm)	BiS40B/2000
	Z-direction servo motor	BiS40/2000
	B-axis servo motor	BiS22/2000
	Spindle servo motor	BiIP40/6000
Overall dimensions length*width*height (Subject to actual situation)		4200×5010×3800
Approximate( net weight is subject to actual)		15000kg

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA.
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.
Q6:What's the OMQ?
A: 1 set. (Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.
