Steel Structure Poultry House Equipment Chicken Farm Drinker and Feeder System

Product Description

Chicken farm drinker and feeder system equipment Company Profile
WeifangU-Best Husbandry Equipment Co., Ltd is located in Weifang city, China.
We are professional manufacture major in design, manufacturing and installing of automatic poultry farm equipment, including automatic feeding system, automatic drinking system, ventilation fan, cooling pad, automatic environment control system, curtains, fogging system, heating system and cage system for broiler, breeder and layers.
Our professional Tech team provide best service, from chicken farm design, layout drawing to on-site equipment installation guidance and workers training.
Not only the high quality, but also our competitive price are very welcomed by our clients. Our poultry equipment has been exported to more than 40 countries and have good market reputation. We have many construction projects in Philippines, Paraguay, Columbia, Costa Ric Arabia and Honduras, etc.
Welcome to contact us for any questions. Let's make poultry raising simple and efficient!
Our service for the project
1. Chicken Equipment: Produce and supply first-class Quality poultry equipment with Good Price;
2. Poultry Farm: Select location, design and construction preparation guidance;
3. Layout Drawing: Make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: If you need, we send our engineer to your farm for guide of equipment installation;
5. Training: We can train your workers to operate our equipment and raise poultry;
6. After-sales service: Free consultancy and prompt reply to questions from clients.
Product Description
U-Best adopt advanced European and US technology in environmental ventilation concept,
undertakes to design large & medium farm project and old farm renovation project.
We will provide customized design and solutions continuously to satisfy your all requirements.
The Complete set of chicken house Poultry Farming Equipment includes:

Item	Description	Item	Description
01	Main Feed Line (Storage) system	06	Environment Control System
02	Automatic Pan Feeding Line	07	Heating System (Optional)
03	Automatic Nipple Drinking Line	08	Fogger Spraying and Disinfection System (Optional)
04	Ventilation System	09	Curtain for Two Side Walls (Optional)
05	Cooling Pad System	10	Plastic Slat Floor (Optional)

Product Parameters
1. Main feed line system (Silo or Manpower Hopper)
Silo or manpower hopper is the beginning of main feed line.
There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper to vice hopper at the begin of each feeding line.

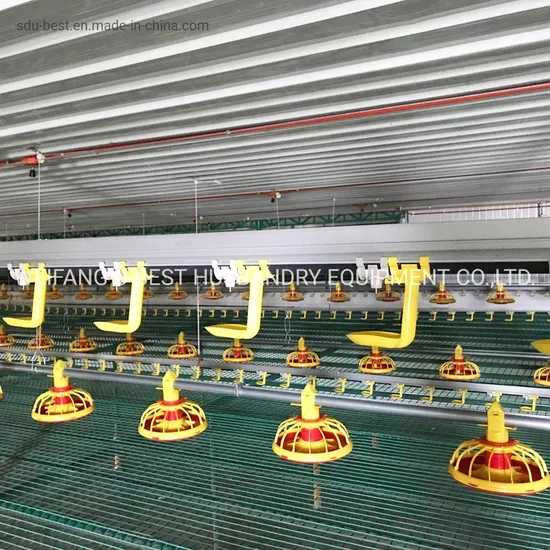

2. Automatic pan feed line system
Automatically convey the feed from vice hopper into each feeder pan/tray to ensure the eating of the broiler chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Automatic pan feeding system consists of:
Driving device, Hopper, Conveying pipe, South Africa auger, Suspension lifting device, Anti-perching device and Germany IFM feed sensor.
Plasson type feed pan,Big herdsman type feed pan,Valco type feed pan, UBT type feed pan.
3. Automatic nipple drinking line
Provide clean and fresh water to broiler chickens steadily which is crucial for the growth of poultry.
The water will be out when birds touch nipples. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.
Three kinds of automatic nipple drinking system for your choice:
Bigdutchman Type: square water pipe with galvanized support.
Plasson Type: round water pipe with aluminum support
Lubing Type: square water pipe with aluminum support.
4. Ventilation system
The system controls poultry house inner environment, provides fresh air, proper humidity andtemperature in poultry shed for your chickens, ensuring your broilers provide maximum production. It is vital for growing birds.
1) Air inlets
High quality engineering material ABS production, high strength, strong anti-aging, can be directly cleaned with high pressure cleaner. The air inlet window panel contains 20mm thick insulation board which has good heat preservation and sealing effect.
2) Ventilation Fans

Model	Air Capacity	Dimension	Power
36" Box Fan	20800m3/H	1000×1000×450mm	0.5kw
50"Box Fan	43070m3/H	1380×1380×450mm	1.1kw
50" Butterfly Cone fan	49452m3/H	1380×1380×450mm	1.1kw

5. Automatic cooling pad system
Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
6. Environment control system
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.
Global Exhibition

FAQ
1. Q: I need a complete set poultry farm and also need a best price, what should I do?

A: pls let us know:
1) Chicken House Size (length x width x height).
2) If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
3) If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
4) Maximum and Minimum Temperature of Farm Location.
5) House Type: Close type of two side bricks building wall with 36" fans and air inlets,
or Open type of using curtain in two sides.

2. Q: What's the material of feeding pan and feeding pipe?

A: the material of feeding pan is 100% PP.
the material of feeding pipe is galvanized pipe.

3. Q: How long is the life of your products?
A: more than 15 Years.

4. Q: Do you have any certificate?
A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.

5. Q: Sample available?
A: Yes. but the client pay for the freight fee.
