Black Tungsten Rod & Polished Tungsten Rod, Ground Tungsten Heavy Alloy Rod, Forged Pure Molybdenum Rod and Pure Wolfram Rod 99.95% W-1 Tungsten

Product Description

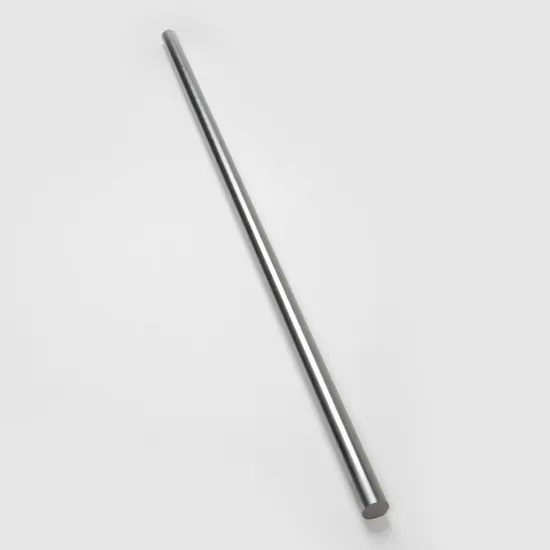

High Quality Pure tungsten rods
1. 99.95% Pure Tungsten Rods
Excellent price 99.95% black tungsten rod
1)Purity: ≥99.95%
2)Forged density:>19.2g/cm3
3)Welding tungsten rod: WT WL WP WC WY, and dia1.0-10mm Length: 150/175/1100mm
4)Surface:black,ground,polished
5) Rod Size: diameter2-120mm Length<2500mm
6)Straightened rods after drawn diameter0.8mm-3.2mm
High Quality tungsten electrode (WP, WL, WT, WC, WY, WZ, etc)
1) Size: diameter 1.0, 1.2 ,1.6, 2.0, 2.4, 3.0, 3.2, 4.0, 5.0, 6.0,10mm, etc. (dia1/8′′, dia3/32′′, dia1/16′′, etc)
2) Length: 150mm, 175mm, 800-1100mm, etc.
3) Surface: polished, ground, black.
4) Density: 19.2g/cm3
5) Tungsten electrode rod appearance: the surface is smooth and straight, no defects.
Available Wolfram tungsten electrode for argon arc welding We have many kinds of tungsten electrode type:

Trademark	Added impurity	Impurity quantity	Other impurities	Tungsten	Electric discharged power	color sign
WT20	ThO2	1.7-2.2	< 0.20	The rest	2.0-3.0	Red
WP	---	---	< 0.20	The rest	4.5	Green
WL10	La2O3	0.8-1.2	< 0.20	The rest	2.6-2.7	Black
WL15	La2O3	1.3-1.7	< 0.20	The rest	2.8-3.0	Goldyellow
WL20	La2O3	1.8-2.2	< 0.20	The rest	2.8-3.2	Skyblue
WC20	CeO2	1.80-2.20	< 0.20	The rest	2.7-2.8	Grey
WY20	YO2	1.8-2.2	< 0.20	The rest	2.0-3.9	Blue
WZ8	ZrO2	0.7-0.9	< 0.20	The rest	2.5-3.0	White

Pure tungsten electrodes-WP(marked green color)
Thoriated tungsten electrodes- WT10(marked yellow color)
WT20(marked red color)
WT30(marked purple color)
WT40(marked orange color)
Lanthanum tungsten electrodes-WL10(marked black color)
WL15(marked gold color)
WL20(marked blue color)
Cerium tungsten electrodes- WC20(marked gray color)
Yttrium tungsten electrodes- WY20(marked sky blue color)
Zirconiated tungsten electrodes- WZ3(marked brown color)
WZ8(marked white color) Available sizes: (10pcs in one plastic packing)
1.0mmX150mm, 1.0mmX175mm1.6mmX150mm, 1.6mmX175mm2.0mmX150mm, 2.0mmX175mm2.4mmX150mm, 2.4mmX175mm3.0mmX150mm, 3.0mmX175mm3.2mmX150mm, 3.2mmX175mm
Tungsten high heavy alloy WNiFe WNiCu
Material:W90-97NiFe(Magnetic)&W90-97NiCu(Nonmagnetic)
Density:16.8-18.8g/cm3
High Heavy Alloy ASTM B777-07 rods/sheet/tubes
- Material: W90-97NiFe(Magnetic) & W90-97NiCu(Nonmagnetic)
- Rods Size:dia(1.5 -200) x Length<500mm
- Plate size: 0.1min Thickness*W*L
1. Tungsten copper alloy rod Specification:
Material: W50-90Cu10-50
Density: 11.85g/cm3-16.75g/cm3
Product standard: GB8320-87
WCu alloy foil size: Thickness(0.08-0.7mm)*Width<120mm*Length<300mm
WCu alloy sheet size: diameter(3-100mm)*L<500mm
2. Pure tungsten/molybdenum rod surface finish:
Black: surface is as swaged or as drawn, retaining a ciating of processing lubricants and oxides.
Cleaned: Surface is chemically cleaned to removed all lubricants and oxides.
Ground: Surface is centerless to ground to remove all coating and to achieve precise diameter control.
3. Pure tungsten rod dimension:

Tungsten Content	Type	Diameter (mm)	Dia.Tolerance (mm)	Length (mm)	L tolerance (mm)
99.95%	Sintering rod	40-100	±3	500max	±5
99.95%	Froged rod	20-80	±2	800max	±5
99.95%	Ground rod	2-60	±0.1	600max	±1

Tungsten rods available size:
Forged rods size: Diameter(2-100mm)*Length<2500mm
Strainghtened rods after drawn diameter 0.8-3.2mm
4. Chemical composition

Content of Tungsten	Content of all other elements	Content of each element
≥99.95%	≤0.05%	≤0.01%

5. Application & Features
Used as electrodes in the field of rare earth metal industry;
For producing electric light source parts and electric vacuum components;
Used in electric boosting glass kiln electrode;
Suitable for producing ion implantation parts;
For producing heating elements and refractory parts in high teperature furnaces;
Very good interlaminar strength at strong thermal and mechanical loadings
