Reverse Osmosis System RO Water Treatment Equipment

Product Description

Reverse Osmosis System RO Water Treatment Equipment
Technological Process Raw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →RO unit → pure water tank → (UV light sterilizer or ozone sterilizer) use
Raw water(inlet water) → raw water tank → feed pump → sand filter → activated carbon filter → cartridge filter,precision filter → high pressure pump →Stage I RO unit → Stage II RO unit →middle water tank → EDI system → polished mixing bed → pure water tank → (UV light sterilizer or ozone sterilizer) use
Components
Raw Water Pump
Multiple Media Filter Filter Media
Activated Carbon Filter Filter Media
Cartridge Filter Filter Element
Dosing Device Dosing Pump Dosing Tank
RO Unit High Pressure Pump RO Membrane Membrane Housing Pressure Gauge Flow Meter Flush Valve
Pressure Regulating Valve Recycling Valve Check Valve Frame
Membrane Washing System Washing Pump Washing Tank
Pipes & Fitting
Electric Control System Control Panel PLC Programmable High & Low Pressure Switch
Conductivity Meter Electrical Instrument Wire & Cable
Optional items
Purified Water Tank
Ozone Generator Ozone Mixer Tower
UV Sterilizer
RO specification

Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	Dimension
					L X W X H(mm)
RO-500L	500	1.5	≥ 50%	4040	1650X630X1800
RO-750L	750	2.5	≥ 50%	4040	1870X630X1850
RO-1000L	1000	2.5	≥ 50%	4040	1870X650X1850
RO-2000L	2000	3.5	≥ 50%	4040	2440X650X1750
RO-3000L	3000	4	≥ 50%	4040	2440X620X1850
RO-5000L	5000	7.5	≥ 50%	8040	2000X900X1800
RO-6000L	6000	9.5	≥ 60%	8040	3000X900X1800
RO-8000L	8000	13.5	≥ 60%	8040	3000×900×1800
RO-9000L	9000	14	≥ 60%	8040	4000X900X1800
RO-10T	10T/H	19	≥ 60%	8040	3000X900X1800
RO-12T	12T/H	19.5	≥ 60%	8040	4000X900X1800
RO-15T	15T/H	23	≥ 60%	8040	4000X900X1950
RO-20T	20T/H	28	≥ 60%	8040	5000X900X1950
RO-30T	30T/H	55	≥ 60%	8040	7000X900X1950

RO membrane technology introduction Reverse osmosis is to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi-permeable membrane) with sufficient pressure, so it is called reverse osmosis.
Reverse osmosis, as an efficient desalination technology, can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water to obtain high-quality purified water.According to the different osmotic pressure of various materials, the reverse osmosis method can be used to achieve the purpose of separation, extraction, purification and concentration.
RO system flow diagram
Single stage RO system
Two stage RO system

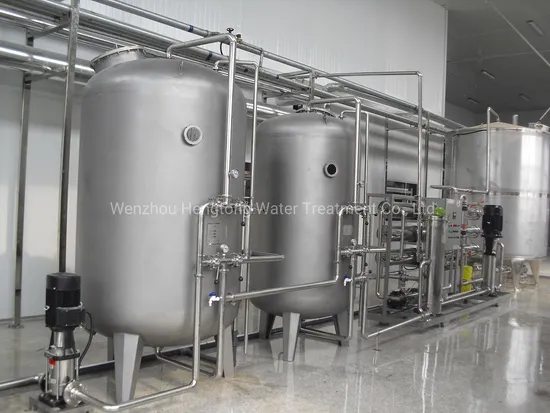

Water treatment equipment presentation
FAQ
1. Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
