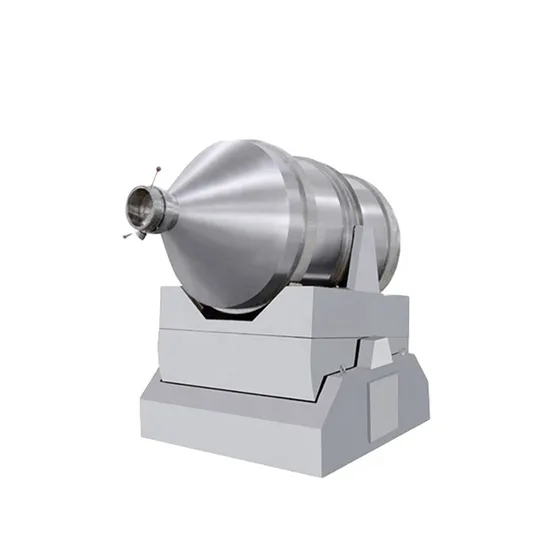

Eyh Series Two Dimensional Mixer
| US$3,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
EYH
Application Area
Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Type
Eyh-10
Barrel Volume
10L
Loading Capacity
5L
Max Loading Weight
2.5kg/Batch
Weight
15kg
Mixer Type
V-Mixer
Layout Type
Horizontal
Mixing Drum Shape
Double Cone
Operating type
Cycle Operating
Transport Package
Standard Export Wooden Cases.
Specification
CE and GMP
Trademark
SPM
Origin
China
Product Description
EYH Series Two Dimensional MixerUse:
This mixer is widely used in pharmaceutical, chemical, food, dye, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1000tp-10000litres).
Main Technical Parameters:
| Type | Barrel volume(L) | Loading capacity(L) | Max loading weight (kg/batch) | Total motor power(kw) | Overall size(mm) | Weight (kg) | Barrel weight(kg) | No.of swing &rotation(r/min) |
| EYH-10 | 10 | 5 | 2.5 | 0.021 | 310*400* 450*395 | 15 | 4 | 85 |
| EYH-30 | 30 | 15 | 7.5 | 0.19 | 540*580* 900*700 | 60 | 8.5 | 61 |
| EYH-60 | 60 | 30 | 15 | 0.4 | 700*730* 1100*990 | 115 | 15 | 50 |
| EYH-150 | 150 | 75 | 37.5 | 1.15 | 800*1050* 1450*1340 | 190 | 50 | 37 |
| EYH-300 | 300 | 150 | 75 | 1.15 | 900*1350* 1550*1400 | 340 | 60 | 30 |
| EYH-600 | 600 | 300 | 150 | 3 | 1170*1640* 2050*1910 | 1150 | 140 | 23.6 |
| EYH-800 | 800 | 400 | 200 | 3 | 1320*1950* 2150*2000 | 1600 | 200 | 19.8 |
| EYH-1000 | 1000 | 500 | 250 | 3 | 1360*2040* 2300*2170 | 1700 | 240 | 19.8 |
| EYH-1500 | 1500 | 750 | 375 | 4.4 | 1580*2400* 2550*2330 | 2000 | 320 | 16.2 |
| EYH-2000 | 2000 | 1000 | 500 | 7.4 | 1740*2600* 2770*2550 | 2600 | 430 | 16.2 |
| EYH-3000 | 3000 | 1500 | 750 | 11 | 1800*2900* 2950*2800 | 3500 | 620 | 13.8 |
| EYH-4000 | 4000 | 2000 | 1000 | 13 | 1970*3300* 3300* | 4100 | 700 | 12.8 |
| EYH-6000 | 6000 | 3000 | 1500 | 18.5 | 2300*2900* 3800*3100 | 6100 | 1100 | 11.2 |
| EYH-8000 | 8000 | 4000 | 2000 | 22 | 2540*4100* 4050*3650 | 7900 | 1450 | 10.4 |
Feature:
The mixing barrel swings while rotating so that the materials in the barrel can be fully mixed. Because the discharge outlet of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
