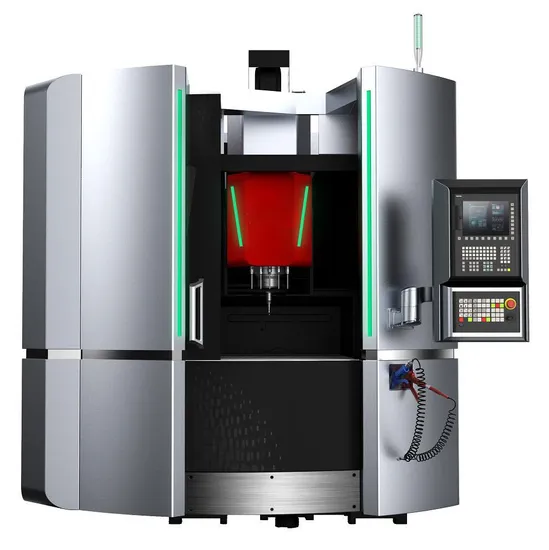

Precision 5 Axis Machine Metal Machining Center Vertical CNC Milling Machine

Product Description

Precision 5 Axis Machine Metal Machining Center Vertical CNC Milling Machine
Product Description

Main parts	Parts Features
X/Y/Z/A/C axis travel	700*420*330mm-±120°*±360°
DD 5-axis table size	Φ 250(Max. piece Φ 350)
Iead screw	Japan NSK ф40-10(Hollow oil-cooled)
Guideway	INA 45 Ball line rail
Cutting feed	20m/min
Rapid feed	30m/min
T-slot size	12mm
XYz axis positioning accuracy and repeatability	0.004/0.002
A-axis positioning accuracy and repeatability	10″/8″
C-axis positioning accuracy and repeatability	6″/5″
A-axis rated torque and maximum torque	131.7/527.8N*M
C-axis rated torque and maximum torque	55.9/251.9N*M
A-axis braking mode and braking torque	Air brake / 300N *M
C-axis braking mode and braking torque	Air brake / 150N *M
Bench up to ground height	940mm
Distance from workbench to spindle end surface	150-480mm
Maximum bench load (average load)	Horizontal 50Kg; Vertical 30Kg
Distance from the spindle center to the front of the fuselage	680mm
Maximum work size	Φ350*280mm
Spindle type	150 Electrospindles
The highest speed of the main shaft	20000rpm
The principal shaft is rated power	20Kw
The main shaft is rated torque	30.7N*M
Spindle cooling	water-cooled
spindle taper	HSK-A63
Maximum capacity of the knife library	24T
Tool specification	A63
Maximum diameter (no adjacent knife)	120mm (160mm)
Tool length	250mm
Knife weight	5Kg
Three-axis motor power	3/3/3Kw
Outline dimensions of the machine tool	2260*3200*2650mm (including rear chip conveyor)
Machine heavy	6500Kg

Anoher Advantages
• Experience superior processing conditions within our state-of-the-art production environment. We're committed to delivering peak performance and extraordinary results, consistently setting new benchmarks in the industry.
Our advanced imported equipment, including both horizontal and vertical machining centers, high-precision CNC boring machines with rotating tables, and gantry guideway grinding machines, ensures exceptional workpiece accuracy. This greatly enhances assembly precision and extends the operational lifespan of our products.
• Cutting-Edge Detection Techniques
Positioning accuracy is meticulously tested and calibrated using advanced laser technology. We adhere strictly to the German VDI3411 inspection standards, conducting five rigorous tests per standard to guarantee unmatched precision.
Each machine tool undergoes comprehensive and exhaustive processing tests before dispatch, ensuring they consistently surpass actual processing accuracy standards.
Product sample
• Experience unparalleled efficiency with Dongguan Luotuo Industrial Co., Ltd's cutting-edge Automated 4-Axis CNC Drilling Milling Center. This advanced machine seamlessly integrates milling, drilling, and tapping functionalities, setting a new benchmark in productivity, precision, and performance. Ideal for vertical machining, it revolutionizes your production process.
• Master the art of precision with our meticulously engineered CNC machine from Dongguan Luotuo Industrial Co., Ltd, designed to handle a vast array of materials including aluminum, steel, copper, and non-metal profiles. Elevate your craftsmanship to new heights and achieve meticulous detail in every project, turning each piece into a true work of art.
• Elevate your production capabilities across diverse industries including 3C electronics, rail transportation, aerospace, and linear module guide rails with our versatile CNC machining solutions from Dongguan Luotuo Industrial Co., Ltd. Our state-of-the-art technology ensures unmatched versatility and top-tier performance, pushing the boundaries of possibility.
Packaging & Shipping
•Highly Protective: Our expertly crafted packaging solutions ensure the Vertical CNC Drilling Machine Center remains impeccably safe and secure during transit. With superior protection, we prevent potential damage, offering you unparalleled peace of mind and ensuring the product's integrity is maintained at all times.
•Structural Stability: Designed with precision, our packaging guarantees the machine's structural integrity. Every component is securely protected, ensuring that the machine arrives in flawless condition, ready for immediate and seamless operation straight out of the box.
•Environmentally Friendly and Recyclable: In line with our unwavering dedication to sustainability, we use packaging materials that are both robust and eco-friendly. Our fully recyclable solutions significantly reduce environmental impact, marrying exceptional protection with responsible environmental stewardship, reflecting our innovative approach to both cutting-edge technology and eco-conscious packaging.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, ensuring your order's priority. A 40% initial deposit is required upon ordering, with the remaining 60% balance due before shipment. This streamlined process guarantees a smooth and seamless transaction from start to finish.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, allowing you to select the most convenient and cost-effective option tailored to your logistical needs.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we typically have your order ready within 30 days. Custom or specialized machines might require additional time. Place your order according to our delivery schedule for timely and reliable service.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set. We proudly offer a comprehensive one-year warranty, ensuring your peace of mind and utmost satisfaction with your purchase.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, ensuring it reaches you in perfect condition and safeguarding your valuable investment.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model tailored to your precise needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, allowing us to identify the ideal machine configuration to meet your specific requirements.
