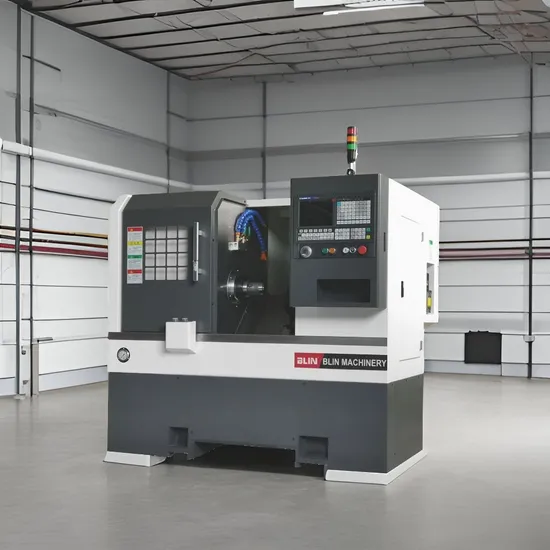

Chinese Small Slant Bed CNC Lathe Machines for Sale (BL-Z5/Z6)
| US$14,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-Z5/Z6
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Chuck Size
5′′/6′′
Max. Swing Dia. Over Bed
400/450mm
Max. Machining Dia.(Disc Type)
200/300mm
Max. Machining Dia.(Shaft Type)
100/120mm
Max. Turning Length
160/250mm
Spindle Bore
45/56mm
Spindle Nose
A2-4/A2-5
Spindle Motor
5.5kw
Tool Turret Type
Gang Tool/ 8 Station Tool Turret
X/Z Axes Positioning Precision
+/-0.006mm
X/Z Axes Repeatable Positioning Precisio
+/-0.005mm
Transport Package
Wooden Case
Specification
CE
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
500 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Chinese small slant bed cnc lathe machines for sale (BL-Z5/Z6)
-Super high performance-price ratio
-Mono-block 45° slant bed
Details:
Specification:
| Item | Specification | Unit | BL-Z5 | BL-Z6 |
| Capacity | Chuck size | / | Collet/5'' chuck* | Collet/6'' chuck* |
| Max. swing dia. over bed | mm | Φ400 | Φ450 | |
| Max. machining dia.(disc type) | mm | Φ200 | Φ300 | |
| Max. machining dia.(shaft type) | mm | Φ100 | Φ120 | |
| Center distance | mm | / | / | |
| Max. turning length | mm | 160 | 250 | |
| Max. bar through dia. | mm | Φ35 | Φ45 | |
| Spindle | Spindle speed | rpm | 4500 | 4000 |
| Spindle bore | mm | Φ45 | Φ56 | |
| Spindle nose | / | A2-4 | A2-5 | |
| Spindle motor | kw | 5.5(Servo) | 5.5(Servo) | |
| Tool turret | Tool turret type | / | Gang tool | Gang tool/ 8 station tool turret* |
| X/Z axes | X axes travel | mm | 300 | 360 |
| Z axes travel | mm | 250 | 310 | |
| X/Z axes servo motor | Nm | 7.5/7.5(GSK) | 7.5/7.5(GSK) | |
| X/Z axes Linear guideway width | mm | 25/25 | 25/30 | |
| X,Z axes ball srew O.D./pitch | mm | Φ25/10 | Φ32/10 | |
| X/Z axes rapid moving speed | m/min | 20 | ||
| X/Z axes positioning precision | mm | +/-0.006 | ||
| X/Z axes repeatable positioning precision | mm | +/-0.005 | ||
| Tailstock | Tailstock quill travel | / | N/A | N/A |
* As option
Main parts list:
| Item | Brand |
| CNC controller | CHINA-GSK |
| Servo motor&driver | CHINA-GSK |
| Spindle Unit | CHINA Top |
| Spindle bearing | CHINA Top-HRB |
| Ball screw bearing | JAPAN-THT |
| Linear guideway | Joint venture-HTPM |
| Ball screw | JAPAN-LAIEN |
| Tool turret | TAIWAN |
| Chuck&oil cylinder | TAIWAN(Opt.: CHINA brand) |
Standard configuration:
-GSK980TC3 CNC controller
-Hydraulic collet
-Gang tool
Optional configuration:
-Chip conveyor
-Bar feeder
