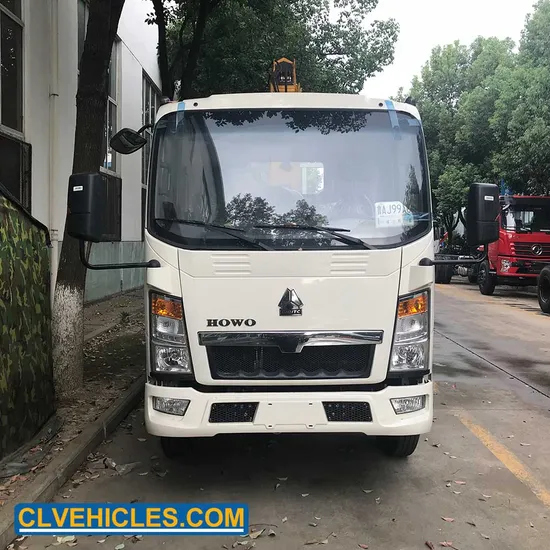

HOWO 4X2 116HP 3.2ton 8m Straight Boom Lifter Crane Truck
| US$14,500.00-16,700.00 | 1 Piece (MOQ) |
Basic Info.
Certification
ISO9001, Gcc
Condition
New
Maximum Lifting Height
<10m
Maximum Lifting Weight
2-4t
Shaft Number
2
Crane Jib
Two-Arm
Type
Straight Arm
Product Name
Truck Crane
Other Name
Truck Mounted Crane, Boom Truck
Crane Type
Telescopic (Straight) Boom, Folding Boom
Chassis
FAW, Foton, HOWO, Shacman, JAC, DFAC, Isuzu
Driving
4X2, 4X4, 6X2, 6X4, 6X6, 8X4, 8X8
Steering
Left-Hand Drive (LHD) or Right-Hand Drive (Rhd)
Tyre
Tubeless, Steel Wire
Engine Power
90~410 HP
Engine Emission
Euro-I, Euro-II, Euro-III, Euro-IV, Euro-V
Engine Type
4 Stroke, Turbocharged, Water-Cooling
Transport Package
Nude, Wax-Polishing
Specification
5995*2350*3200 mm
Trademark
CLVEHICLES
Origin
Hubei, Mainland, China
HS Code
8704223000
Product Description
| PARAMETER | |||||
| Vehicle | Upper body | ||||
| Speed | 100 km/h | Crane model | SQ3.2SA1 | ||
| Passenger | 2 | Crane type | Telescopic boom | ||
| Wheelbase | 3360 | Boom arm | 2 (including main boom) | ||
| Tyre | 7.00R16 | Max. Lifting moment | 8 T·m | ||
| Engine power | 116 hp | Work range (m) | 2.5 | 4 | 5.65 |
| Displacement | 3760 ml (EURO II) | Lifting weight at each range (kg) | 3200 | 1750 | 1050 |
| Principle | |||||
| The truck-mounted crane truck consists of chassis, cargo van, column, frame, boom (crane), outrigger, turntable, hook assembly and etc. The truck-mounted crane realizes various mechanical actions through the principle of hydraulic transmission. The power of the crane is to take out the capacity of the engine through the power take-off to drive the hydraulic oil pump to work, and the hydraulic oil pipe is connected to the hydraulic valve to achieve related functions. We can also use the oil pump motor unit to provide the power source. The oil pump motor unit drives the motor to work through 380V voltage when there is no vehicle power in the field, docks, ships, workshops, etc. If there is no external power supply, we use the generator generates power to activate the electric motor then drives the oil pump to work. | |||||
| Application | |||||
| It is widely used in urban and rural construction, road and bridge pipe network construction, landscaping projects, power equipment installation, and mall and medium-sized water conservancy construction, due to its advantageous maneuverability and rapid transfer, that integrate the functions of lifting and transportation.When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting. | |||||
