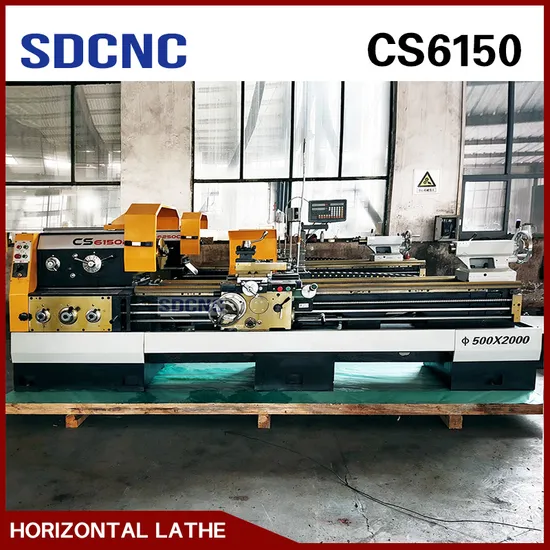

Heavy Duty Horizontal CS6150 Metal Lathe Manual Lathe Parallel Lathe for Sale
| US$8,500.00-9,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6150
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Keyword
Heavy Duty Lathe Machine CS6150
Product Name
Manual Lathe Metal Lathe
Color
Customrized
Function
Metal Turning
Transport Package
Wood Packaging
Specification
2850*1150*1550
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
2850.00cm * 1150.00cm * 1550.00cm
Package Gross Weight
2500.000kg
Product Description
Product Description
Good for turning long workpieces
The surface of the bedways is supersonic frequency handened.
The spindle system is high in rigitidy and accuracy.
Clutch in headstock makes the lathe more safe and reliable
Ballscrew Centralised for X and Z axis
Centralized Lubrication system.
Product Parameters
| Item | Unit | Parameter | |
| CS6150 | |||
| Machining range | Maximum rotary diameter on the bed | mm | Φ500 |
| Max. turning diameter on the saddle | mm | Φ300 | |
| Maximum workpiece length | mm | 3000 | |
| Spindle Spindle | bore diameter | mm | Φ52 |
| Spindle head type | ISO 702/II No.6 bayonet type | ||
| Spindle speed | r/min | 24 levels 9-1600 | |
| Main motor power | kW | 7.5 | |
| Tailstock | Diameter/maximum stroke | mm | φ75/150 |
| Tailstock sleeve bore taper | Morse | 5 | |
| Tool holder | Tool holder station/tool holder specification | 4/25X25 | |
| Feed | Max. travel in X direction | mm | 145 |
| Maximum travel in Z direction | m/min | 320 | |
| X-feed range | mm/r | 93 types 0.012-2.73 | |
| Z feed range | mm/r | 93 types 0.028-6.43 | |
| Metric thread range | mm | 48 types 0.5-224 | |
| Inch thread range | t.p.i | 46 types 71-1/8 | |
| Modulus thread range | πmm | 42 types 0.5-112 | |
| Pitch thread range | t.p.i. π | 45 kinds 56-1/4 | |
| Other | Cooling pump motor power | kW | 0.12 |
| Rapid feed motor power | kW | 0.3 | |
| Machine size | mm | 4632*975*1270 | |
| Machine weight | Kg | 2900 | |
