Versatile New Materials Testing Machine with Capillary Rheometer Functionality

Product Description

Product Description

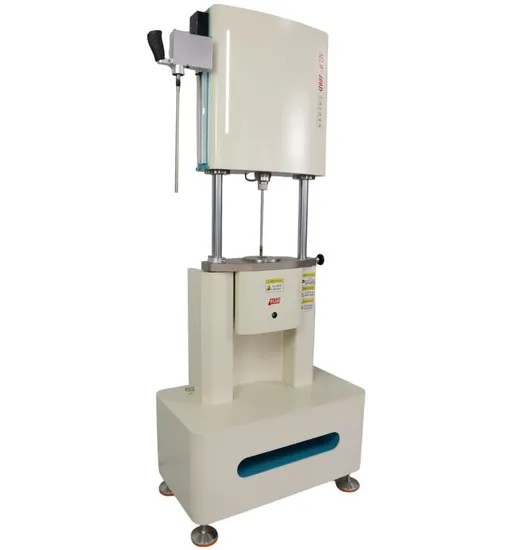

Capillary Rheometer MLW-400D Application area 1. This machine is expertly crafted to adhere to the 'capillary' section of ISO 11443 "Determination of the Fluidity of Plastics Using Capillary and Slit-Die Rheometers" and the HG/T 4300-2012 "Rubber. Measurement of Rheological Properties. Piston Type Capillary Rheometer Methods." It is engineered to precisely evaluate the shear rate and melt fluidity of plastics and polymer materials under specified shear stress and temperature conditions, including determining the apparent viscosity of thermoplastics.
2. Introducing a state-of-the-art computer-controlled intelligent capillary rheometer offering versatility with constant pressure, consistent speed, stable temperature, varied heating rates, and different shear rate settings. The advanced software cleverly calculates pressure, temperature, and speed parameters for diverse plastics across multiple die diameters, autonomously plotting curves, and adeptly saving and printing data.
3. Tailor-made for flexibility, the machine allows customization based on specific customer needs, including low and high-temperature types, varied pressures, and rod diameters, ensuring it meets every unique requirement.
Detailed Photos System composition The system flaunts a robust 'mouth'-shaped frame for structural strength, elegantly combined with a streamlined design that exudes modernity and technological prowess. It incorporates a Taiwan brand precision ball screw to facilitate seamless kinetic energy transference, ensuring unparalleled stability during tests.The speed control system includes an AC servo system for accurate displacement and pressure control.e. Equipped with a spiral heating wire, the heating unit delivers uniform temperature throughout the barrel. The furnace body, designed for hassle-free cleaning, can be completely moved out post-experiment. The cutting-edge measurement and control system offers wireless remote operations for mobile preloading. With a user-friendly software interface, test modes and parameters can be effortlessly set, while real-time curve display and calculation results enhance the overall user experience.
Product Parameters

Temperature range	Room temperature~400ºC	Heating rate	1-10ºC/min,Continuously adjustable, and rapid heating
Temperature measurement display accuracy	0.1ºC	Pressure range	1-100MPa±0.5%
Maximum driving force	10KN ,20KN(Can be customized according to customer requirements)	Pressure measurement accuracy	±0.5%FS
Pressure resolution	0.1Mpa	Velocity range	0.01-500mm/min
Deformation measurement accuracy	±0.5%FS	Plug diameter	φ12 mm(Can be customized according to customer requirements)
Plug area	113.04mm2	Discharge die specification	Discharge die specification
Discharge die material	Tungsten carbide	Power supply	Power supply

Certifications
Company Profile Changchun Intelligent Instrument Equipment Co., Ltd. stands as a pioneering technology-based enterprise, harmonizing R&D, production, sales, and unparalleled after-sales service. Founded in 1989, with a legacy spanning 35 years, we are among China's earliest developers of advanced testing machines. Our expertise lies in crafting optomechanical-electrical integrated testing instruments, analytical devices, and automotive testing equipment, all certified by the ISO9001 international quality system.
Renowned as a high-tech enterprise, our company thrives on adopting cutting-edge design concepts and leveraging unique design capabilities. We develop a multitude of test and analytical instruments, and automotive testing devices, aligning with national and international standards including German, American, and Japanese benchmarks.
