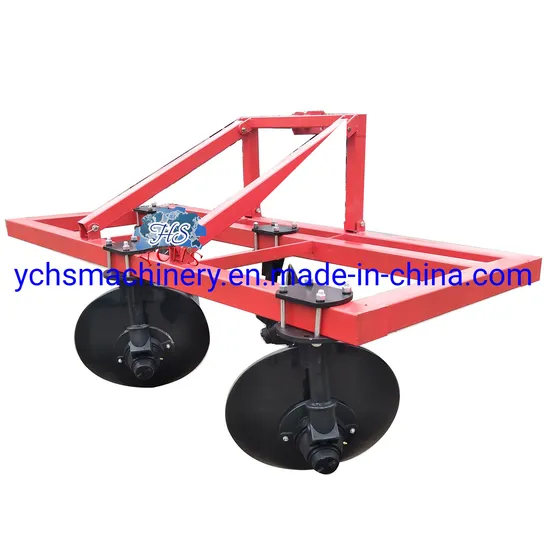

Agricultural Machinery Disc Ridger for Tractor

Product Description

3Z series of disc ridger is suitable for ridging after the tillage in the farm field.it 3Z consists of heavy duty tubular
box frame, 3 point hitch system and discts.he disc blades are made after the heat treatment in the material of 65
Mn spring steel that has better hardness. The machine is reasonablefor construction,conveniently to transport,
easy to adjust, and conveniently to use and maintain.
Technical Specification
• The disc blades are made after the heat treatment in the material of 65Mn spring steel.
•There two series of this disc ridger. Two discs and four discs respectively. You can choose the nos of disc to
meet your need.

Model	unit	3Z-80	3Z-120	3Z-140	3Z-180	3Z-260
Working width	mm	800	1200	1400	1800	2600
Ridging width	mm	200~450		300-500
Ridging height	mm	150-260		150~300
Ridging of rows		1(2)	1(2)	1	1(2)	1(2)
Total weight	kg	120	140	220	200	246
Matched power	hp	20~30	30-40	50-60	60-70	70-90
Linkage		Three-point suspension I type		Three-point suspension II type
The items selectable		rear cover board
