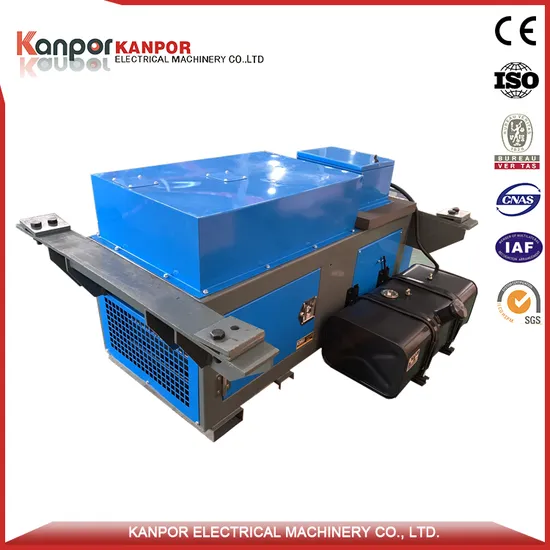

Kanpor Under-Slung Type Reefer Container Diesel Genset
| US$2,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KPYD33-RF
Type
Basic Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
HSS
Conditions of Use
Car Type
Usage
Common Units, Standby Unit
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Certificate
Ce ISO SGS TUV ISO9001
Voltage
450V/260V
Current
38.5A
Engine Model
Yd490d
Transport Package
Plywood Case
Specification
1700*560*1100mm
Trademark
Kanpor
Origin
Fujian, China(Mainland)
HS Code
8502110000
Production Capacity
300PCS Per Month
Product Description
1. GENERATOR DATAVoltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION
| Model | Prime output(kw/kva) | Standby output(kw/kva) | Engine model | Alternator model |
| KPYD33-U | 24/30 | 27/33 | YD490D | STF-184E |
| Genset Data | Size & Weight (Under-slung type) | 1700*1300*850mm (580kgs) | ||
| Frequency | 60Hz | |||
| Standard Features | Radiator 50OC max,fans are driven by belt, with safety guard/Ripple flex exhaust pipe, exhaust siphone, flange, muffler | |||
| Voltage | 460V | |||
| Phase & Wires | Three phase | |||
| Power Factor | COSĪ¦=0.8 (lagging) | |||
| Battery | 12V | |||
| Fuel Tank | Included | |||
| Breaker | CHINT | |||
| Engine Data | Brand & Model | Yangdong YD490D | ||
| Cycle | 4 stroke | |||
| Engine Power (kwm) | 27KW | |||
| Air Intake Way | Natural | |||
| Governor | Mechanical | |||
| Cylinder | 4 | |||
| Bore*Stroke (mm) | 90*105 | |||
| Displacement (L) | 2.672 | |||
| Fuel Consumption | 223g/kw.h against prime power | |||
| Compression Ratio | 18:1 | |||
| Combustion System | Direct injection | |||
| Speed | 1800RPM | |||
| Cooling way | Water cooled | |||
| Alternator Data | Brand & Model | Kanpor STF-184E | ||
| Alternator Power | 24KW | |||
| Frequency & Speed | 60Hz, 1800RPM | |||
| Phase & Voltage | Three phases 460V | |||
| System | Brushless AC Synchronous, Single bearing | |||
| Insulation & Protection | H, IP23 | |||
| Voltage Regulator | Standard AVR | |||
| Control System | Brand & Model | Smartgen HGM420N | ||
| Two language interface: Chinese/English | ||||
| Start or Stop Generator set manually / automatically; Open controller output can be defined as Pre-heat/Idle output. | ||||
| High Coolant temperature protection; Low Oil pressure protection. Over speed protection | ||||
| Over load protection; Generator over/under frequency protection: Generator over/under/unbalance voltage protection | ||||
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
