Titanium Sb265 Gr. 2 Seawater Gasification Heat Exchanger

Product Description

1. Product Description

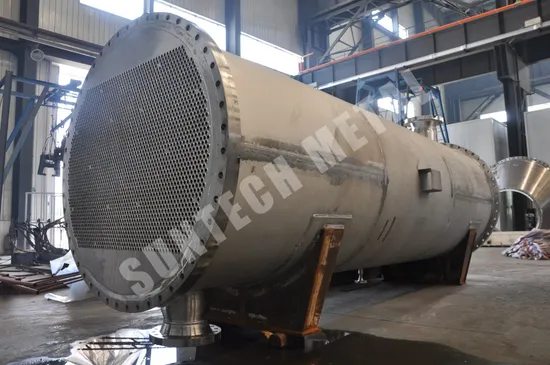

Item Name: Pure Titanium ASME SB265 Gr.2 Seawater GasificationHeat Exchanger
Application: Seawater GasificationIndustry
Tube Material: SB265 Gr.2
Tubesheet Material: SB265 Gr.2
Dimension: Dia. 1500* Length 6000mm*Surface 1200 sqm
Weight: 47774kg

Item Name	Pure Titanium ASME SB265 Gr.2 Seawater GasificationHeat Exchanger
Application	Seawater GasificationIndustry
Tube Material	SB265 Gr.2
Shell Material	SB265 Gr.2
Diameter	OD1500mm
Length	6000mm
No. of Tubes	2500 pcs
Tube Wall Thickness	0.8mm
Shell Thickness	86mm
Surface	1200sqm
Weight	47774Kg
Pressure	SHELL SIDE 1.77/FV MPa
Media	Sea Water

2.Manufacturing Facilities (Partial)

3. Testing Device (Partial)

4. Certificate (Partial)
Suntech has been certificated by ASME U, PED and NB which are accepted by many famous domestic and oversea companies. and also established the quality control system based on ISO-9001 which have been implemented to the process of R&D, fabrication, logistic , Markting and services.
5. Company Profile
We provides high grade pressure vessel, reactors, heat exchangers, heaters, towers, tanks, columns, condensers, reboilers, separators, evaporators made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel and clad metals, designed and fabricated according to ASME U, PED, TEMA, API650, EN13445 and other codes. These products have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection, by Global Top 50 Chemicals for one decade.
Located in No.36, East Jingshan Road, Gaochun Economic Development Zone, Nanjing, P.R.China, Suntech Equipment occupies an area of 15000m2, among which, 1000m2 is an isolated workshop for non-ferrous metal welding. Our company has obtained A2 level fabrication license, ASME U stamp license, NB as well as PED certifications. Our company has obtained ISO9001, ISO14001 and ISO45001 qualifications as well. In addition, we have acquired over 30 nationally authorized inventions and utility patents.
Suntech Equipment currently has over 120 employees engaged in the design and fabricating of special metal pressure vessels, among them, more than 40 senior engineers and professional technicians. They are familiar with pressure vessel design and manufacturing standards such as GB code, ASME, and European Norms. Our company has certified pressure vessel welders with skills covering SAW, SMAW, GTAW, PAW, and GMAW, and NDT personnel with qualifications covering UT, PT, MT, and RT.
