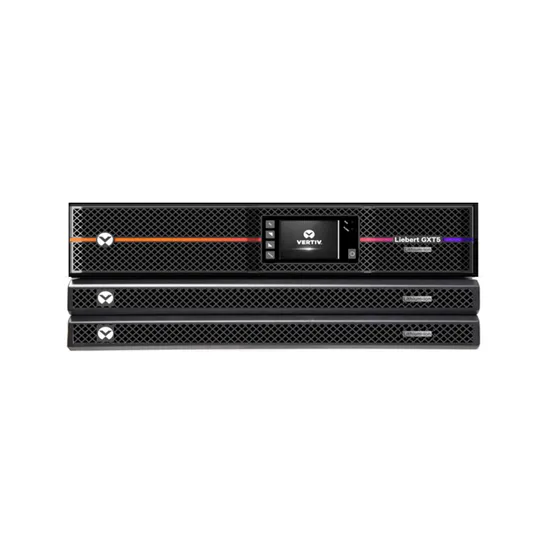

Vertiv Gxt5 750va 1000va 1500va 2000va 3000va 220V Rack Tower Pure Sine Wave Single Phase Online UPS for Data Rooms/Hospitals Equipment
| US$455.00-566.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Vertiv GXT5 UPS
Protection
Short Circuit
Application
Industry
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Centralized Model
Brand
Vertiv
Product Name
Vertiv Gxt5 UPS
Power Level
750va - 3000va
Input Voltage
200/208/220/230/240 VAC
Output Voltage
200/208/220/230/240 VAC
Product Type
Tower UPS/Rack-Mounted UPS
Rated Frequency
50 Hz / 60 Hz
Trademark
Vertiv
Origin
China
HS Code
8504402000
Production Capacity
1000
Product Description
Technical Specifications| Model Number | GXT5-750IRT2UXL | GXT5-1000IRT2UXL | GXT5-1500IRT2UXL | GXT5-2000IRT2UXL | GXT5-3000IRT2UXL |
| Ratings (VA/W ) | 750 VA / 750 W | 1000 VA / 1000 W | 1500 VA / 1500 W | 2000 VA / 2000 W | 3000 VA / 3000W |
| Dimensions and Weight | |||||
| Dimensions (mm) Unit, W×D×H | 400×430×85 | 470×430×85 | 540×430×85 | ||
| Unit Weight (kg) | 16.5 | 21 | 28.5 | ||
| Input | |||||
| Rated Voltage | 230 VAC | ||||
| Rated Frequency | 50 Hz / 60 Hz | ||||
| Frequency Range | 40 to 70 Hz | ||||
| Power Factor | ≥0.99 | ||||
| Output | |||||
| Nominal Voltage | 200/208/220/230/240 VAC | ||||
| Waveform | Sine wave | ||||
| Inverter Overload Capability | >200% minimum 250 ms; 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 seconds | >200% minimum 250 ms; 150 to 200% for 2 seconds; 105 to 150% for 55 seconds | |||
| Efficiency in Online Mode | Up to 93% | Up to 94% | |||
| Inverter Bypass | Up to 98% | ||||
| Output Receptacles | (8) EN60320/C13 | (6) EN60320/C13 (1) EN60320/C19 | |||
| Internal Battery | |||||
| Rated Voltage | 36 Vdc | 48 Vdc | 72 Vdc | ||
| Charger Current | Nominal 2.2 A; Maximum 8 A | ||||
| Type | Valve-regulated, non-spillable, lead acid | ||||
| Qty × V × Rating | 3 × 12 V × 9.0 Ah | 4 × 12 V × 9.0 Ah | 6 × 12 V × 9.0 Ah | ||
| End Cell Voltage | 1.67 V/cell (discharge voltage per cell will be from 1.67 Vdc to 1.90 Vdc, can be selected by PARAMSET) | ||||
| Floating Voltage | Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell | ||||
| Battery Voltage Range | 30 Vdc to 42.3 Vdc | 40 Vdc to 56.4 Vdc | 60 Vdc to 84.6 Vdc | ||
| General | |||||
| Operating Temperature | Full power up to 40 ºC (up to 50 ºC with derating) | ||||
| Storage Temperature,°C | -15 to +40 | ||||
| Relative Humidity | 0 to 95% non-condensing | ||||
| Operating Elevation | Up to 3,000 m at 25°C without derating | ||||
| Audible Noise | <46 dBA max @ 3 ft. (1 m) front and sides <43 dBA max @ 3 ft. (1 m) rear | <46 dBA max @ 3ft. (1 m) front and sides <45 dBA max @ 3 ft. (1 m) rear | <48 dBA max @ 3ft. (1m) front and sides <48 dBA max @ 3 ft. (1 m) rear | ||
| Safety | UL-1788 (Fifth Edition) ,C-UL listed, IEC 62040-1: 2017 Edition 2.0, EN 62040-1:2008+A1:2013 | ||||
| RFI/EMI | CISPR22 Class A (RFI) / FCC Part 15 (Class A) | ||||
| Transportation | ISTA Procedure 1A | ||||
1. May I take some samples to test before I placing the order? Yes, we can offer sample testing for you to verify product quality and performance.2. What is the warranty? We support 1 years warranty.3.What can you buy from us? Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.4. What payment methods does your conmpany support? We could accept T/T, credit card, Alipay or L/C at sight.5. What are the terms can you offer for us? We could offer EXW, FOB, CIF, DDP and so on.
