Vmc1160 Precision Single Spindle Vertical CNC Milling Machine Metal Machining Center

Product Description

Product Introduction and Use

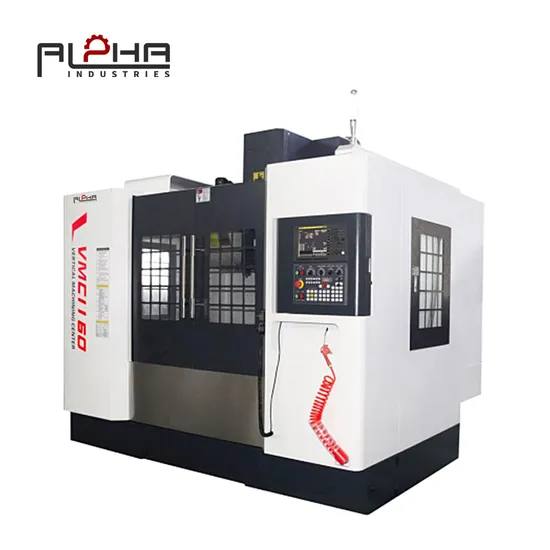

This product X, Y, Z three-axis servo direct control semi-closed vertical machining center, three-axis linear ball guide, guide rail load, span wide, high precision, suitable for heavy load, compact structure and size reasonable, the spindle is servo motor driven by the timing belt. It can realize the clamping of various parts such as discs, boards, housings, cams, and molds at one time. It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of medium and small batch products can satisfy the processing of complex and high-precision parts. The fourth rotary shaft can be equipped to meet the processing requirements of special parts.
CNC Control System
The system has complete and reliable interlock , safety protection and fault diagnosis and alarm functions,equipped with RS232 standard and network communication interface,and computer program control and storage,can achieve DNC processing.(according to the system has differences).
Product Parameters

Model No.		VMC1160
Travel	X-axis	1100mm
	Y-axis	600mm
	Z-axis	600mm
	Spindle nose to table surface	120-720mm
	Spindle axis to column surface	650mm
Worktable	Table size	1200×600mm
	Max.loading	800kg
	T-slot width	18
	T-slot quantity	5
Spindle	Spindle taper	BT40
	Spindle speed	8000rpm
	Spindle motor	11kw
Tool	Max.tool dia.	φ80/φ150mm
	Max.tool length	200mm
	Max.tool weight	8kg
Rapid movement	X,Y axis rapid movement rate	24000mm
	Z axis rapid movement rate	20000mm
	Cutting feed rate	1-10000mm/min
Accuracy	Position accuracy	± 0.01mm
	Repeat positioning accuracy	± 0.003/300mm

Motor

XYZ axis AC servo motor(torque N.m 22/22/22)
Power device	Power form	3-phase AC 380V±10% 50Hz±10%
	Capacity	20KVA
Coolant system	Capacity	200L
	Cooling pump power	440W
	Cooling pump flow	67L/min
	Rated head	16m
Air supply	Using air pressure	0.6MPa
Dimension and weight	Dimensions	3350×2300×2550mm
	Net weight	6200Kg

Accessories

No.	Name	Specification or marking	Quantity	Remarks
1	Adjustable block and bolt	Created by self	8 sets
2	Milling chuck	BT40	1 set
3	Allen wrench		1 set

List of Main Purchased Parts

No.	Name	Specification		Quantity	Remarks
1	Spindle unit	BT40 (φ150)	Taiwan Yucheng	1 set	Standard accessories
2	Pressurized knife cylinder	4500	Taiwan	1set	Standard accessories
3	Disc magazine	BT40-24T	Taiwan Desu	1set	Standard accessories
4	X direction ball screw	4010/C3	Taiwan HIWIN	1pair	Standard accessories
5	Y direction ball screw	4010 /C3	Taiwan HIWIN	1pair	Standard accessories
6	Z direction ball screw	4010/C3	Taiwan HIWIN	1pair	Standard accessories
7	Screw bearing		NSK	15	Standard accessories
8	Coupling		Import	3	Standard accessories
9	Coolant pump		Domestic	1	Standard accessories
10	Lubrication system	Ruiqing	Domestic	1set	Standard accessories
11	Pneumatic system		Yadeke	1set	Standard accessories
12	X-direction roller liner rail	45mm	Taiwan HIWIN	1pair	Standard accessories
13	Y-direction roller liner rail	45mm	Taiwan HIWIN	1pair	Standard accessories
14	Z-direction roller liner rail	45mm	Taiwan HIWIN	1pair	Standard accessories

Standard Accessories

Spindle unit 8000rpm	GSK 218 control system	Rigid tapping
Taiwan HIWIN screw	Adjustable block	Move the hand vein
Centralized automatic oil lubrication	External cooling system and water tank	Simple oil-water separation device
Full protection sheet metal shield and rail shield	Taiwan HIWIN linear guideway	Tubular work lights, warning lights
Taiwan 24 tools disc magazine	Spindle servo motor:
	speed 8000rpm,power11kW

Optional Accessories

System:Siemens 808D

Fanuc 0i-mf

Mitsubishi M80
