2m3 Plough Share Type Dry Mortar Mixer
| US$8,100.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LDH-2.0
Certification
ISO, CE
Control Type
Artificial
Power Supply
Electric
Automatic Grade
Semiautomatic
Shaft Type
Single
Layout
Horizontal
Mixer Type
Powder Mixer
Working
High Speed Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Application Area
Engineering & Construction
Application
Powder, Viscous Fluid
Operating Type
Cycle Operating
Transport Package
Plywood Box
Specification
2m3
Trademark
NW
Origin
Jiangsu
HS Code
8474900000
Production Capacity
50 Sets Per Year
Product Description

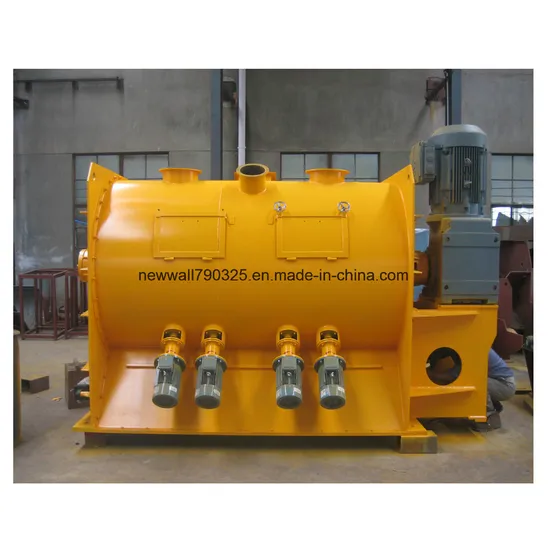

Plough mixerGeneral description:
The plough mixer consists of transmission mechanism, horizontal drum, colter
and fly cutter. The material flow forwards in axial direction along the drum shell
by the force from the colter. The materials will be thrown to all directions by high
speed rotating fly cutter when pass by it, achieve uniform mixing in the shorter time.
Application range:
It is widely used in construction material, chemicals, medicine, agricultural medicine,
food, feed and feed additives, dyes, paints, plastics and other industries, such as
solid - solid (powder and powder), mixed solid-liquid and wet granulation,
drying and composite technology. It is especially suitable for the mixture of viscous or
rubbery additives.
Character:
1. Short mixing time, can mix the materials that are big difference in granularity and density.
2. work under sealed condition, run stably, dust concentration is low, no pollution to the
environment.
3. Can add spraying device, can separate and mix the lump materials.
4. It has the best performance of separating the fibers.
| Model | Full volume (m3) | Load coefficient | Main motor power (kw) | Flying blade motor (kw) | Rated speed (r/min) |
| LDH-0.5 | 0.5 | 0.4~0.6 | 7.5 | 4×2 | 85 |
| LDH-1.0 | 1.0 | 0.4~0.6 | 15 | 4×3 | 85 |
| LDH-2.0 | 2.0 | 0.4~0.6 | 22 | 4×3 | 68 |
| LDH-4.0 | 4.0 | 0.4~0.6 | 37 | 4×4 | 57 |
| LDH-6.0 | 6.0 | 0.4~0.6 | 55 | 4×4 | 57 |
| LDH-8.0 | 8.0 | 0.4~0.6 | 75 | 4×4 | 42 |
| LDH-10.0 | 10.0 | 0.4~0.6 | 90 | 5.5×5 | 42 |
