Wet Or Corrosive Environment Use Heavy duty SS304 Caster 100/125/150/200mm Stainless Steel Castors Wheels

Product Details

Product Description

Product Description

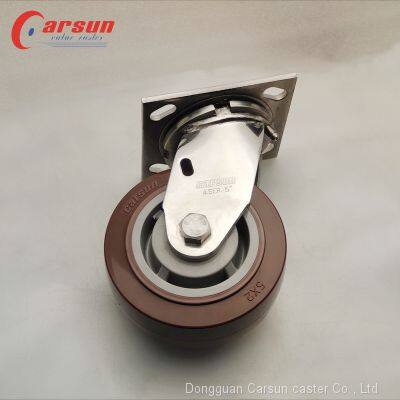

4-5U01S-401V 5-inch 304 stainless steel swivel polyurethane caster wheel
stainless steel Heavy Industrial Castor red PU swivel caster wheels for without brake
Customizable 4inch, 6inch, 8inch casters
Can customize stainless steel TPR casters, nylon casters, heat-resistant casters
Note: due to the shooting light and angle, the product picture may have color difference from the physical product. Please refer to the received physical product. Thank you!
FEATURES AT A GLANCE
We are a professional manufacturer of industrial caster wheels. We can produce different types of casters according to your
requirements.
please send the inquiry if interested.
Click the picture on the right
Support Description: The thickness of top plate is 6mm. The top plate and rotary table are steel castings. Plane supporting structure is adopted, which is durable, replaceable and convenient for maintenance.
Right elevation
Left elevation
Front elevation
00:02
00:28
PRODUCT SPECIFICATIONS

Wheel Diameter (mm)	Tread width (mm)	Capacity per caster (kg)	Wheel	Bearing	Model number		Load Height (mm)	SwiVel Radius (mm)
					SwiVel	Rigid
125	51	180	Performa Rubbcr	SS Double Ball	4-5U01S-301X	4-5UO1R-301X	165	108
				Delrin+SS Tubing	4-5U01S-301V	4-5U01R-301V
		340	Polyurethane	SS Double Ball	4-5U01S-401X	4-5UO1R-401X
				Delrin+SS Tubing	4-5U01S-401V	4-5UO1R-401V
		375	Modified Nylon	SS Double Ball	4-5U01S-202X	4-5UO1R-202X
				Delrin+SSTubing	4-5U01S-202V	4-5U01R-202V
			White Nylon	SS Double Ball	4-5U01S-201X	4-5U01R-201X
				Delrin+SS Tubing	4-5U01S-201V	4-5U01R-201V
		294	Polyolefin	SS Double Ball	4-5U01S-101X	4-5U01R-101X
				Delrin+SS Tubing	4-5U01S-101V	4-5U01R-101V
		450	Thermo	SS Double Ball	4-5U01S-551X	4-5UO1R-551X
				Delrin+SS Tubing	4-5U01S-551V	4-5UO1R-551V

PRODUCT CONFIGURATION
6mm thickened top plate and Stainless steel bracket
Built in stainless steel sleeve + Delrin bearing
5 inch red polyurethane wheel
Successful Project
2.5 inch red polyurethane stainless steel caster with stainless steel brake
3 inch White Nylon stainless steel caster with stainless steel brake
4-inch black nylon stainless steel caster heat resistant caster without brake
