PVC Glass Fiber Plastic Reinforced Pipe Extrusion Making Machine

Product Description

PPR Glass Fiber Reinforced Pipe Production Line.
Machine Introduction:
This extrusion line adopts high efficient barrier type screw, specially designed for PP-R material and glass fiber(GF) material, high quality high speed extrusion, high shear stress and low temperature to ensure that raw materials can be extruded with high performance. The measurement on the feeder with the drying system can guarantee theuniformed extrusion.
Equipment List:
1. Vacuum feeding machine
2. Drying hoppers
3. Single screw extruder
4. Co-extruder for marking lines
5. Vacuum calibrating tank
6. Water spraying cooling tank
7. Ink jet printer
8. Haul off machine
9. Non-scraped cutting machine
10. Pipe stacker
11. Spare parts
Machine Features:
1. Split spiral extrusion die head
Can maintain low melt pressure and low plasticization temperature. A wide range of polyolefin materials can be processed by this die head, too.
2. Vacuum calibrating tank and water spraying cooling tank
Adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system. All the pipelines are made of stainless steel to avoid rustiness.
3. Haul off machine
Caterpillars are made of abrasion-resistant material to ensure stable traction at high speed as well as a long service life.

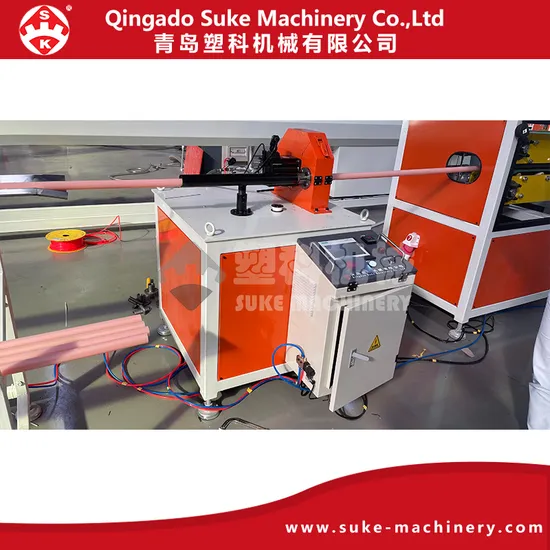

4. The automatic non-scraped cutting machine
Is able to make perfect, non scraped cuts on the finished pipes. The cutting motion of the saw is controlled by a synchronous belts drive which operates very quietly
