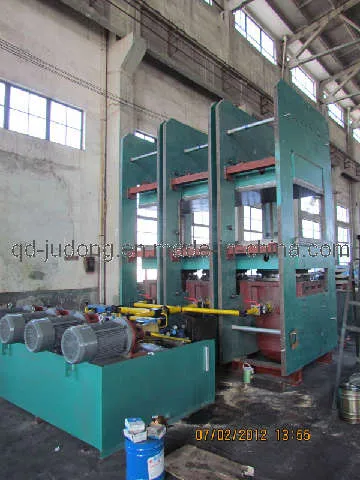

1000t Rubber Platen Vulcanizer Press / Rubber Vulcanizer (ISO/CE)

Product Description

Application:
1. Mould ejecting vulcanizer
2. Full automatic rubber machine
3. Automatic mould opening device
4. CE stardard and ISO 9001
Standard configurations are full computer, the electro-hydraulic proportional control system, high degree of automation. It can provide special configuration for users with computerized frequency conversion power- saving control system of independent intellectual property rights.
These series products are high efficiency, energy-saving, stable and reliable.
Conveyor belt vulcanizing machine is mainly used for curing the molding of the flat tape, rubber, polymer and other flat tired products, it has the advantage of pressure per unit area of the hot plate, and reliable equipment operation, low maintenance. Vulcanizing machine's main function is to provide the the vulcanized required pressure and temperature. Pressure by the hydraulic system through the hydraulic cylinder, the temperature of the heating medium (usually steam, thermal oil, etc. ). Flat belt vulcanizing press column flat belt vulcanizing machine and frame type flat belt vulcanizing press rack structure can be divided into two categories; Single-layer and multilayer according to the working layers: According to the hydraulic system the working medium can be hydraulic and pressure.
NOTE:
1, the operator to wear protective equipment, may not use wet gloves. 2, curing the first warm-up plate, check the slabs with or without debris, other parts of the normal. - 3, pressure gauge, a thermometer to maintain a sensitive and effective, according to the security and process conditions, with strict control of steam pressure, oil pressure and curing temperature. 4, into the vulcanizing mold, the hand shall not be inserted into the parallel plates, to prevent hot Jishang found that the problem should stop treatment. The mold used to display smooth to prevent the fall injured. 5, the operation is completed, turn off the power of water, Qi valve will die back to the designated place.
Model Data:

Type	XLB-DQ1200× 1200× 2	XLB-DQ1300× 2000× 1	XLB-Q1200× 2500× 1	XLB-Q1500× 2000× 1	XLB-Q2000× 3000× 1
Total pressure(MN)	315t	560t	750t	1000t	1800t
Plate size(mm)	1200× 1200	1300× 2000	1200× 2500	1500× 2500	2000× 3000
Daylight(mm)	200	400	400	400	400
Layer	2	1	1	1	1
Piston stroke(mm)	400	400	400	400	400
Plate unit area pressure (kg/ cm2)	22	21.5	25	33.5	30
Main motor power(KW)	3	8	9.5	11	26
Overall dimension (L× W× H)(mm)	1685× 1320× 2450	2000× 1860× 2500	2560× 1700× 2780	2810× 1550× 3325	2900× 3200× 2860
Weight (kg)	9500	17000	20000	24000	66000
