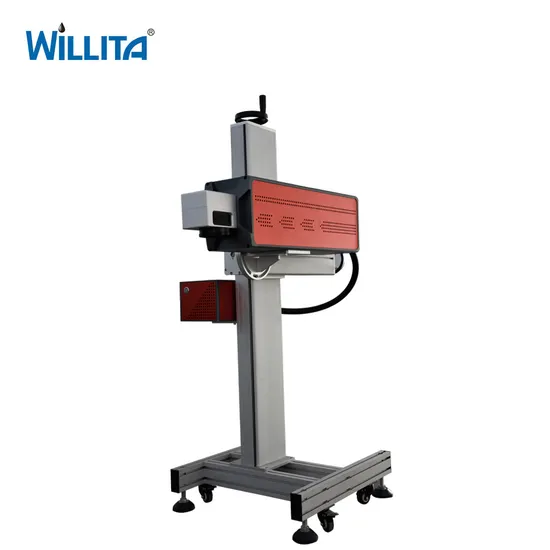

Auto Focus Flying CO2 Laser Marking Machine 20W 30W 60W 100mmx100mm for Plastic Wood
| US$3,799.00-6,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WLDC-20A co2 laser marking machine
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
CO2 Laser
Laser Classification
Free Electron Laser
Type
CO2 Laser Marking Machine
Marking Method
Array Type Marking
Marking Speed
<=7000mm/S
Marking Depth
<=2mm
Marking Range
110mm*110mm, 70*70mm / 110*110mm / 140*140mm
Touch Screen
10.2 Full Color Touch Screen
Transport Package
Standard Export Packing
Specification
Single package size: 70X90X150 cm
Trademark
Willita
Origin
Hubei Province China
Production Capacity
50 Sets/Per Week
Product Description
20W 30W 50W laser printer for plastic wood leather laser marking machine qr bar code date logo laser markerProduct Parameters
| Type | Co2 Laser |
| Output power | 20W/30W/50W |
| Wavelength | 1064μm |
| Marking depth | <=2mm |
| Focusing range | 140mm 210mm optional |
| Cooling way | Air cooling |
| Working temperature | 5~45 ºC |
| Speed monitoring | Sync encoder or analog speed |
| Repetition frequency | 20~200khz(Pulse width 30~200nm) |
| Marking scope | 70*70mm 110*110mm 145*145mm 175*175mm optional |
| Engraving way | Flying engraving, Static engraving, Intelligent engraving |
| Engraving content | Text, Complex graphics, One dimension (two dimensional) bar codes, Variable serial number,Date, TXT file, RS232 TCP/IP communication data, PLT format drawings, etc |
| Engraving advantage | Online editing, Multi-faceted engraving, Facing engraving, Accurate records, Fast shift, Trigger smart memory |
| Linear speed | <=7000mm/s |
| Character size | 0.2~110mm |
| Min line width | 0.05mm |
| Repeat accuracy | ±0.01mm |
| Laser | Pulsed fiber optic laser |
| Power consumption | <=250W |
| Voltage | 500W-1.2KW, AC220V 50HZ |
| Weight | Laser machine 30kg, bracket 50kg |
