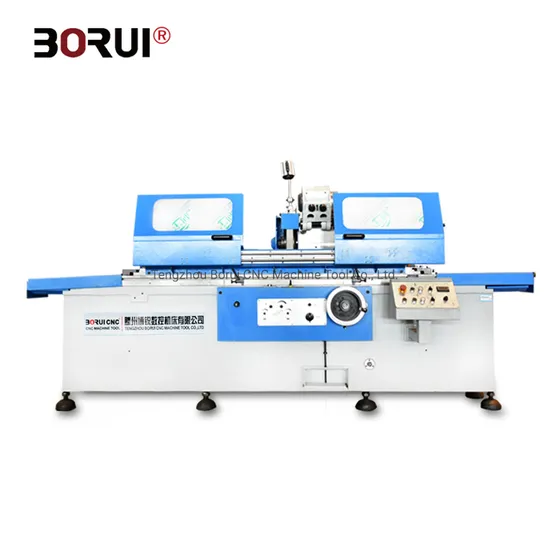

Factory Directly Sells Stock Cylindrical Grinder M1432b for Parts Processing

Product Description

Factory directly sells stock Cylindrical grinder M1432B for parts processing
Product Description
Application:Characteristics of machine tools:
1. When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale.
2. Oil film between bearing and spindle keeps vibrations ata minimum level, hence achieving outstanding results and top accuracy.
3. Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation.
4. Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations.
5. Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments.
6. Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing.
7. Longitudinal table feed can be set to automatic mode -hydraulically driven or manual mode - by handwheel.
8. Stepless feed adjustments with the option of aprogrammable hold time at the end of each table movement.
9. Hydraulic or manual repositioning of grinding spindle stock.
10.Guideways in x- and y-axis are precisely constructed and hand-polished.
11.Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide.
Product Parameters

Model		MW1420	M1432B	M1450	M1463
Distance between centers		500, 750mm	1000, 1500, 2000	1500,2000,3000	3000,4000,5000
Center height		135mm	180	270	335
Dia. Ground (O.D)		5~200mm	8~320	25~500	30~630
Dia. Ground (I.D)		25~100mm	30~100	30~200	30~200
Max. Length ground (O.D)		500, 750mm	1000, 1500, 2000	1500,2000, 3000	3000,4000, 5000
Max. Length ground (I.D)		100mm	125	320	320
Max. weight of workpiece		100kg	150	1000	3000
Swiveling angle		+90 degree	+90 degree	+90 degree	+90 degree
Center taper (MT)		4MT	MT4	MT6	MT6
Spindle speed		50HZ: 25 - 380r/min	50HZ: 25-220r/min	50HZ: 20 - 224r/min	50HZ: 8 - 150r/min
Wheel Spindle speed		1670rpm	1670	1330/665	740
Swiveling angle		+30 degree	+30 degree	+30 degree	+30 degree
Wheel Size Max. dimension of wheel (OD x W x ID)		400 x 50 x203mm	400 x 50 x203mm	500x75x305mm	900x75x305mm
Max. Swiveling angle	Clockwise	3 degree	3 degree	3 degree	2 degree
	Anticlockwise	7degree(1000)6degree	7degree(1000) 6degree(1500)	6degree(1500) 5degree(2000)	3degree(3000) 2degree(4000)
Roundness		0.003mm	0.003	0.005	0.005
Cylindricity		0.005mm	0.005	0.008	0.008
Roughness		0.2Ra	0.2	0.32	0.32

Detailed Photos


Packaging & Shipping
Packing shipping
For machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS.For packing :Free fumigation plywood packaging steel base
our service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can help you to work it out.8. Always be honest, never lie to customer, and never declare anything we don't have
