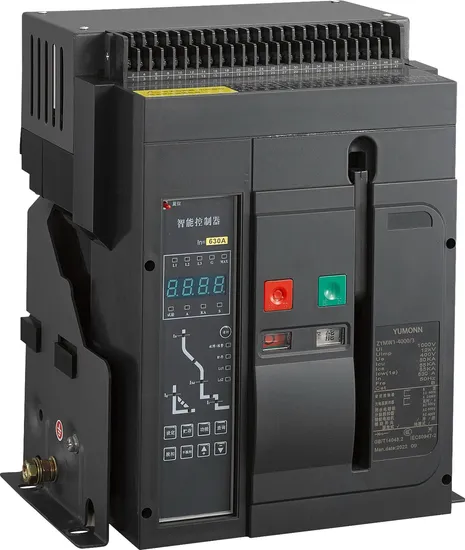

Air Circuit Breaker Draw-out Type Fixed Type 400VAC/690VAC 630A-6300A Acb

Product Description

Product Description
The Air Circuit Breaker (ACB) is a vital component in modern electrical systems, designed to provide reliable protection and efficient management of electrical circuits. Engineered for safety and durability, ACBs are essential in safeguarding electrical infrastructure in industrial, commercial, and residential settings.

1	Rated current	630A-6300A
2	Rated insulating voltage	AC 800V
3	Rated impulse withstand voltage	AC 8000V
4	Rated working voltage	AC 400V
5	Breaking capacity	35/50KA
6	Metal parts materials	Steel/brass/copper
7	Insulating materials	DMC
8	Color	White/bright grey/dark grey/black
9	Fire rating	Flame retartant/Non flame retartant
10	Electrical life	600~2000 times
11	Mechanical life	2000~7000 times
12	Certificate	ISO9001
13	Warranty	2 years
14	Price	Negotiation

Purpose and Scope of Use W1 Series Intelligent Low Voltage Air Circuit Breakers (hereinafter referred to as circuit breakers) are suitable for
It is suitable for frequency of AC 50Hz, rated voltage up to 660V (690V) and below, and rated current from 200A to 6300A.It is used to distribute electric energy and protect lines and electric equipment from overload, undervoltage, short circuit, single-phase grounding and short circuit, short circuit, single-phase grounding and other faults. With intelligent protection functions and precise selective protection, the circuit breaker can improve the reliability of
power supply and avoid unnecessary power outages. At the same time, it has an open type communication interface for four-remote operation to meet the requirements of the control centre and and automation system. The impulse withstand voltage of the circuit breaker is 8000V at 2000 metres above sea level (according to the standard correction for different altitudes, the impulse withstand voltage is 8000V at 2000 metres above sea level,and the maximum voltage does not exceed 12000V).The circuit breaker complies with GB 14048.2'Lowvoltage switchgear and controlgear Part 2: Circuit breakers' and IEC60947 'Low-voltage switchgear and controlgear Part 3: Circuit breakers' and other standards.
Technical Data and Performance

Rated frame current Inm A	Rated frame current Inm A
2000	400,630,800,1000,1250,1600,2000
3200	2000,2500,2900,3200
4000	3200, 3600, 4000
6300	4000. 5000. 6300
