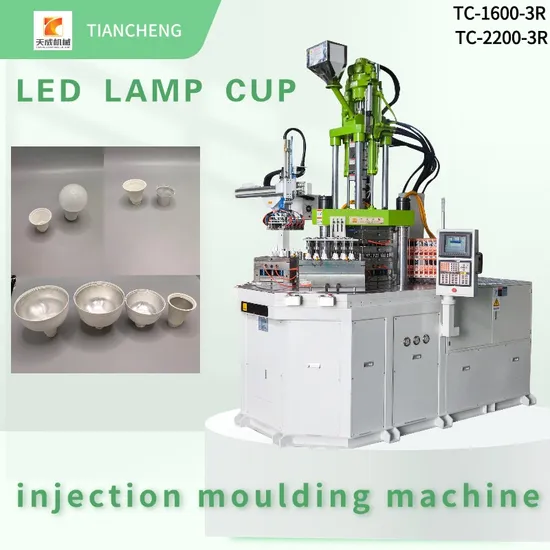

LED Lamp Cup Vertical Injection Machinery Dongguan Factory Price Plastic Injection Molding Machine
| US$45,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TC-1600-3R
Type
Tube Head Injection
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Screw Diameter (mm)
40--42
Maximum Injection Pressure (Kg/Cm2)
2268--1835
Clamping Force (Ton)
160
Opening Force (Ton)
13
Opening Stroke (mm)
300
Total Capacitance (Kw)
13.8
Machine Specification(M)
2.9*2.35*3.6
Weight of Machine (Kg)
8500
Transport Package
Plywood Case Pcking
Specification
160T/220T
Trademark
TianCheng
Origin
Dongguan Guangdong
HS Code
8477101090
Production Capacity
20000 Sets/Year
Packaging & Delivery
Package Size
290.00cm * 235.00cm * 360.00cm
Package Gross Weight
8500.000kg
Product Description
Welcome to Dongguan Tiancheng Machinery Co., Ltd160T/220T Fully Automatic Injection Molding Machine for LED Lamp Cup Product Description
Product Parameters
| Brand Name | Tiancheng | Style | VERTICAL | |
| Condition | New | Model NO. | TC-1600-3R | |
| Screw Diameter (MM) | 40--42 | Max.Hydraulic Pressure(Kg/cm3) | 140 | |
| Maximum injection Pressure (Kg/cm2) | 2268--1835 | Pump Output (L/min) | 68 | |
| Theoretical Shot Volume (Cm3) | 226--254 | Oil Tank Capacity (L) | 600 | |
| Maximum Shot Weight (G/oz) | 202/7.2--226/8.0 | Cooling Water Consumption(L/H) | 800-1000 | |
| Injection Rate (Cm3/sec) | 220-260 | Electric Power (KW) | 22 | |
| Screw Speed (R/Min) | 0--240 | Total capacitance (KW) | 13.8 | |
| Screw Rate (MM) | 220 | Total Wattage (KW) | / | |
| Nozzle Retraction Stroke (MM) | 330 | Machine Specification(M) | 2.9*2.35*3.6 | |
| Clamping Force (Ton) | 160 | Weight of Machine (KG) | 8500 | |
| Opening Force (Ton) | 13 | Plastic Processed | PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP | |
| Platen Size (MM) | 1384 | After-sales Service Provided | Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support | |
| Distance Between Tie-Bere (MM) | / | After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service | |
| minimum Mold Thickness (MM) | 300/400 | Warranty | 1 year | |
| Opening Stroke (MM) | 300 | Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining, Other | |
| Max-Distance opening mold (MM) | 600/700 | |||
| Max.Mold Size | 550*500 | |||
| Ejector Force (Ton) | 4.6 | |||
| Ejector Stoke (MM) | / |
Packaging & Shipping
Certifications
After Sales Service
Our Services
1. 24 hours services, the answers to any questions will be replied sooner.
2.Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4. After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5.The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6.12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Why choose TianCheng Machinery Co., Ltd.? |
| A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
