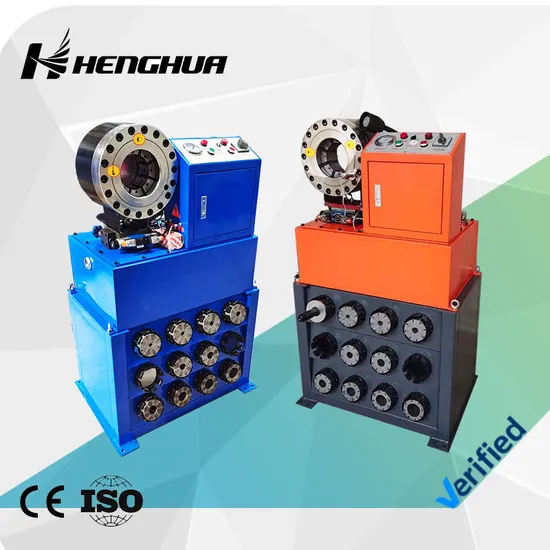

CE Quick Change Free Dies 1/4"-2" Automatic Hydraulic Pipe Rubber Hose Crimping Machine Manual Hydraulic Hose Press Crimper

Product Description

Product Parameter
Model	DX68	DX76	DX102	DX150
Crimping range	6~51mm(1/4" ~2")	6~76mm( 1/4~3" )	6~102m( 1/4~4" )	6-150mm(1/4~6")
Max crimping Force	449T	500T	1400T	2500T
Rated Pressure	31.5MPa	50Mpa	31.5Mpa	31.5Mpa
Weight	250kg	300kg	520kg	900kg
Mold Quantity	10 sets	13Sets	16Sets	17Sets
Power	3KW/4KW	4KW	4KW/5.5KW/7.5KW	4KW/5.5KW/7.5KW
Voltage	220V/380V	240V / 380V	380V or customized	380V or customized
Scale accuracy	0.01mm	0.01mm	0.01mm	0.01mm
Overall dimensions	670*490*780mm	730*470*930mm	900*790*1070mm	1030*630* 1160mm

Brief Introduction Model DX68 pipe locking machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. Main Technical Feature Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T Scale accuracy: 0.02mm Rated pressure: 31.5 MPa Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm
Main Technical Feature
1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation

>>Any color can be customized.
>>Machine parts can specify the brand requiryed by customers, such as Famous brand motors.
>>Can customize customer's own logo and machine OEM.
>>Molds can be customized in different models.

Promise
We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.
Our Factory
Installation and Operation
1.Add sufficiently 79 liters of Great Wall brand 46# anti-abrasion hydraulic oil. If the room tem- perature is lower than 10ºC, 10% transformer oil is need to add.
Connect the electric source well as per the machine requirements, to make the direction of the motor rotation to be consistent with the rotation direction marking, and grounding protection shall be done.
2.Regulating the scale
The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead con- nection is reliable.
3.The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating move- ment, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.
4.Pressure regulation
The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder (see figure), when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).
5.Operation
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.
Our Clients
Packaging & Delivery
Relatived Rubber Hose Making Machinery Products
1.Hose Cutting Machine
2.Hose SKiving Machine
3.Rubber Hose,Hose assembly
4. Ferrule, Hose Fittings, Flange, Adapter,Clamp,etc
