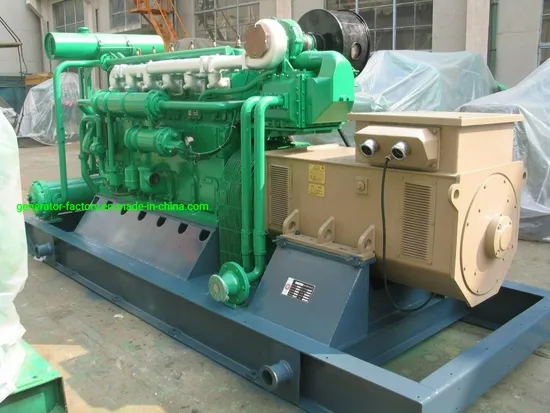

Dynamic 180kw 6190 Gas Engine Generator Set
| US$70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
6190
Output Type
AC Three Phase
Gas Source
Natural Gas
Certification
CE, ISO, CCC
Power
50-200kW
Standard
Standard
Operation
24/7 Continuous Operation
Fuel
Natural Gas/Biogas/Other Flamable Gasess
No. of Cylinders
6 Cylinder
Rpm
1000rpm/1200rpm
Exit Voltage
400V/480V
Transport Package
40 Hc Container
Trademark
Dynamic
Origin
China
HS Code
85022000
Production Capacity
1000 Units Per Year
Product Description
General engine specification:| Engine type | 6190 series | |
| Working principle | 4-stroke, natural aspiration or with turbocharger and intercooler | |
| Configuration | Six cylinders, in-line arrangement | |
| No. of cylinders | 6 | |
| Bore | mm | 190 |
| Stroke | mm | 210 |
| Mean piston speed | m/s | 7 @1000rpm 8.4 @ 1200 rpm |
| Compression Ratio | 9: 1 or as customer requirement | |
| Total displacement | L | 35.73 |
| Rated power | kW | 120-350 |
| Rated speed | r/min | 900-1000-1200 |
| Idle speed | r/min | 600 |
| Lube oil pressure in oil main line | kPa | 400~800 |
| Lube oil consumption | g/kWH | ≤1.1 (including oil change) |
| Ignition method | Spark Plug Ignition | |
| Starting method | 24VDC motor | |
| Direction of Rotation | Flywheel view | Counterclockwise |
| Power output method | Flywheel output |
Applications:
Applicable fuel type:
natural gas,
biogas,
syngas, etc.
Typical scenario:
power generation,
compressor driving,
other rotating machineries (with shaft power input requirement between 80-300KW).
