Factory Sale Automatic CNC Lathe Machine Multi-Purpose Flat Bed Lathe Machine

Product Description

Product Description

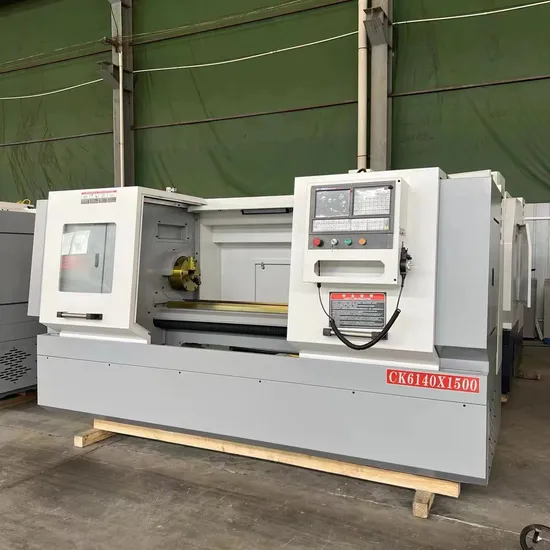

CK6150 /CK6140/CK6130/CK6180 Lathes Metal Horizontal Flat Bed CNC Lathe
CK6140/6150/6180/61100/61125 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity,etc. Its main components and structure have been optimized design, and it is the first choice for machining shafts, discs,sleeves, special-shaped surfaces and screw workpieces.GSK/SIEMENS/FANUC (optional) CNC system and full digital AC servo system, X and Z axis are all controlled by semi-closed loop,ball screw pair adopts C3 precision ball screw, electrical components are all imported or domestic famous brands, Comply with CE or domestic 3C certification.
Product Structure

Specification	ck6130	ck6140	ck6150	ck6180	ck6163
Swing over bed(mm)	300	400	500	800	630
Max turning diameter plate(mm)	100	200	300	480	350
Max processing length(mm)	400/320	750/1000/1500	750/1000/1500	1000/1500/3000	1000/1500
Number of spindle speed	electrodeless
Spindle speed range(r/min)	150-2000	150-2000	50-1700	25-850	25-850
Spindle hole	48	83	82	100	100
Main motor power(kw)	4	7.5	7.5	11	11
L*W*H(mm)	1620*1060*1600	2230*1280*1640	2655*1520*1860	3200/3700*1820*1780
Weight(kg)	1220	1650	2300	3600/3900/5400	3400/3700
X/Z positioning precision(mm)	0.012/0.013		0.025/0.03
Tool carrier form	Electric vertical four-station tool rest
Dia. of tailstock sleeve	75		100

1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
3. The post is located on precision contrite gears with a high repeated positioning accuracy.
4.Both chuck and tailstock are supplied with hydraulic or manual type.
5. The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
6. The spindle bore size is 52/80mm. The spindle system is high in the rigidity and accuracy.
7. Three gears controlled by a handle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
8. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.
9.Intergrated automatic lubrication system.
Important note::1. Please confirm your local voltage with our sales staff before ordering.2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you. Packaging & Shipping
