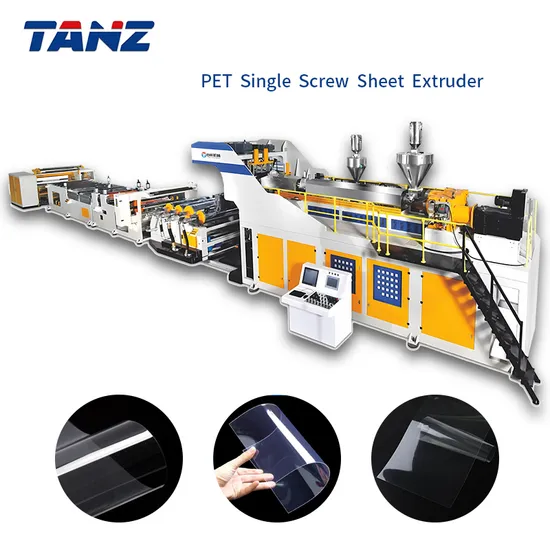

Pet Pellet Sheet Extrusion Equipment Tanz-30 0.15-2.0mm Thickness

Product Description

Product Description
Advanced Pet Sheet Making Machine
Discover our cutting-edge Pet Sheet Extrusion Line, meticulously designed for high-quality plastic sheet manufacturing. Rely on Dongguan Taizhang Machinery Co., Ltd. for innovative plastic extrusion equipment.
Project Overview: Discover the cutting-edge Taizhang Factory Plastic Sheet Extrusion Equipment by Dongguan Taizhang Machinery Co., Ltd. Perfect for plastic production needs.

1. Conditions of Use:	380V/3P/50Hz
2. production material:	PET pellets and regularly broken pieces
3. Sheet material thickness:	Thickness:δ=0.15-1.5mm
4.Finished sheet width:	800mm
5.Extrusion output:	300-350Kg/h

Configure your plastic sheet extrusion equipment with Taizhang Factory for top-quality production. Enhance your plastic extrusion process with our machinery.

1	120/38 exhaust single screw extruder	1 set	Include	120 exhaust extrusion host
				Two-point automatic suction machine
				Host quantitative feeder
				Masterbatch feeding machine
				Vacuuming system
2	Hydraulic screen changer	1set	Include	Double column screen changer
				Hydraulic system
3	Melt metering pump	1 set	Include	Melt pump
				flow channel
				Pressure Sensor
				Cardan shaft
				Transmission system
4	Mold	1 set
5	Three-roller calender	1 set	Include	Three-roller calender
				Hydraulic system
6	Roller temperature control system	1 set		Three-stage roller temperature control system
7	Cooling shaping bracket	1 set
8	Waste edge trimming device + waste edge winding device (both sides)	1 set	Include	Waste edge trimming device
				Waste edge winding device
9	Silicone oil coating machine + dryer (double-sided)	1set	Include	Silicone oil coating machine
				Dryer
10	Traction device	1 set
11	Dual station winding machine	1 set
12	Electrical control system	1 set

PET Sheet Extrusion Machine
PET Sheet Extrusion Machine Advantages:
The single screw design maintains original toughness for sheets with good gloss.
Equipped with an exhaust device to remove moisture, saving energy and producing transparent sheets.
Vacuum device ensures clean water extraction for lower defective product rates.
Automatic material suction system reduces manual work and replenishes materials automatically.
Quantitative feeder synchronizes with the main machine to avoid feeding issues.
Cylindrical double-station screen changer minimizes material leakage.
Imported pressure sensor ensures precise synchronization with the metering pump.
Servo motor-driven three-roller calender for precise synchronization.
Servo motor-driven traction device and winding machine with automatic meter counting.
Control system enables fully digital high-precision control.
Company: Dongguan Taizhang Machinery Co., Ltd.
