Woodworking Special Shape Polishing Sanding Machine
| US$8,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SK1000-P6
Variable Speed
Variable Speed
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Name
Polishing Sanding Machine
Max. Working Width
1000 mm
Min. Working Length
500 mm
Working Thickness
2-150 mm
Polishing Roller Speed
Frequency Control
Disc Motor Power
1.5kw *1
Worktable Lifting Motor Power
0.55kw
Feeding Motor Power
2.2 Kw
Swing Motor Power
0.37 Kw*2
Cross Motor
1.5kw*2
Transport Package
PE Package
Specification
3650*1850*2100 mm
Trademark
SOSN
Origin
China
Production Capacity
100 Sets /Month
Product Description
woodworking special shape polishing sanding machine SK 1000-P6Function and Characteristics:
1). The machine suits for sanding of kitchen Cabinet, Window, Door, Furniture…etc.
2).The modular structure can be combined optional to satisfy clients' demands.
3). Frequency conversion speed control is used in each group
4).The height of the worktable can be adjusted.
5).Each unit can be drawn out for sand sand shelf, or replace emery cloth sanding can parts more portable, easy operation and maintenance.
Technical specification:
| Working width | 1000mm |
| Min.Working length | 500mm |
| Working thickness | 2-150mm |
| Polishing roller speed | frequency control |
| Feeding speed | 3-12.5m/min |
| Total motor power | 13.87kw |
| Overall dimensions | 3650*1850*2100mm |
| Net weight | 4200kg |
| Disc motor | 1.5KW*1 |
| Cross motor | 1.5KW*2 |
| Screw roller motor | 2.2KW *2 |
| Up and down motor | 0.37KW*4 |
| Table up and down motor | 0.55KW |
| Feeding motor | 2.2KW |
| Swing motor | 0.37KW *2 |

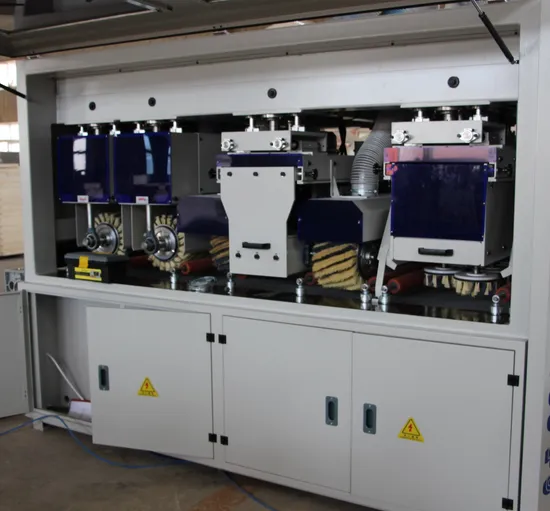

Inner structure of brush polishing sanding machine Sk1000-P6:
Working video of brush polishing sanding machine:
https://youtu.be/VucMhqxKxIo
Have any need, pls contact me
Grace
