Cheaper C Z Purlin Forming Machine Steel Frame Steel C U Z W L Shape CZ Purlin Profile Channel Making Roll Forming Machine

Product Description

Product Description

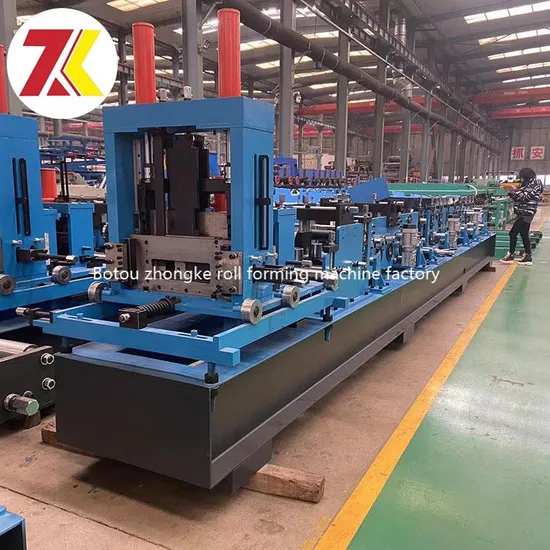

CZ all-in-one machine using the same set of equipment through automatic, manual simple stepless regulation can produce C/Z type brown strip of various specifications, no need to change the specification of the forming roll. The production process adopts automatic control mode, according to the input purlin length, longitudinal hole distance, the number of parameters such as automatic punching, cutting, forming. C80-300, Z120-300 can be produced between any model, can produce plate thickness 1.5-3.0mm,C type steel, Z type steel specifications to achieve automatic computer stepless replacement, any specification replacement time only 1 minute; The switch of C/Z type steel only requires a simple manual reversing operation, which can realize the switch of any specifications from C type steel to Z type steel in 5 minutes. The operation is simple, the operation difficulty is reduced, the time of changing the shape is saved, and the production efficiency is improved. CZ type purlin machine by guiding, levelling device, 2 hydraulic punching device, hydraulic cutting device, roll forming machine can be changed quickly, electric control system, hydraulic system, etc. The main drive of the whole line molding adopts a deceleration motor and frequency conversion control, speed control, fixed length, positioning control is accurate and reliable. Beautiful appearance of the machine, high production efficiency (production speed up to 25m/min)
Product Parameters
1.Main Technical Parameters

Item	Specification
Material Thickness	1.5-3mm
Roller Material	Cr12 mould steel
Forming Speed	15m/min
Output Speed	8m/min
Cutting Mode	Hydraulic cutting
Cutter Material	Cr12 Steel
Length Measurement	Encoder
Control Mode	PLC
Main Motor Power	22KW
Production Capacity	20sets/Month
Shaft Diameter	75mm

2.Process Flow
Decoiler -- Feeding & Guiding - Leveling-- Hydraulic Cutting --Roll forming--- Product to Run Out Table
Detailed Photos

Packaging & Shipping

Our Advantages
Why choose Zhongke ?
Zhongke is a manufacturer of tile press machines, we have many years of R & D, design and production of rich industry experience. Nowadays, our company has formed a complete modern management model with great product development and innovation ability. Our products are favored by global customers because of the lightweight structure, novel design and high degree of innovation.

After years of practical experience accumulation and industry experts design layout, Our company in product
production, sales, installation, commissioning and provide technical consultation of tile press has great advantages. Our factory is a modern enterprise with strong technical strength and production capacity. Our Company products rely on high quality and low price and good technical performance, in the customer base to harvest good feedback. And we can also according to user requirements for special design and manufacturing, at the same time in the production, installation, commissioning and maintenance of color steel equipment for users to provide one-stop service and technical guidance.

After Sales Service
> Warranty: 2 Years.During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.> We will provide the technical support for the whole life of the equipment.>TERMS: 1. Delivery: in stock2. Package: Export Standard package for container3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )4. Validity: good for 30days
Qualification certificate


FAQ
Q1:How to play order?
A1:Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
