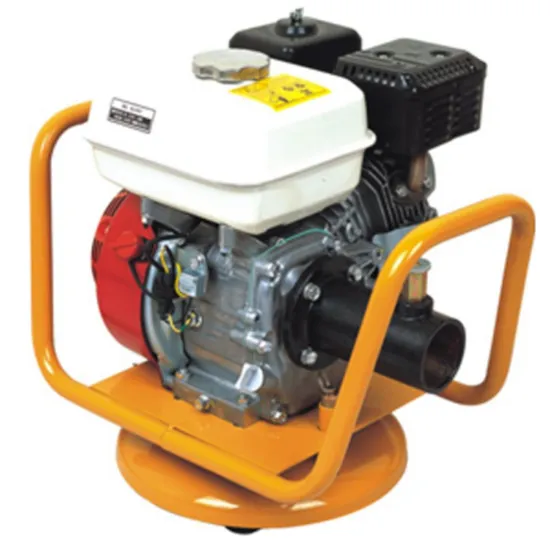

Diesel Cement Vibrator 6m Hose Gasoline Robin Engine 5.5HP Durable Concrete Vibrator
Basic Info.
Model NO.
ZXR
Type
Concrete Vibrator
Shotcrete Type
Semi-Dry
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
60m²/h
Feeding Height
1370mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Product Name
Robin Concrete Vibrator
Model
Ey20 5.0HP
Coupling
Japanese Type
Matched Shaft
Zx-38mm, Zx-45mm
Length
4m, 5m, 6m
Weight
21kgs
Packing Size
51*39*51cm
Transport Package
Carton
Specification
5.0HP
Trademark
ACE
Origin
Ningbo, China
HS Code
84306100
Production Capacity
300000 PCS/Year
Packaging & Delivery
Package Size
51.00cm * 39.00cm * 43.00cm
Package Gross Weight
22.000kg
Product Description
(ZXR) Hot Sale Constructiontool Gasoline Engine 4-Stroke Concrete Vibrator
Product Uses
Gasoline engine concrete vibrator , work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.
Specification Date
| model | ZXH | ZXR | ZXL | ZXRB | ZXD |
| Engine | air-colled,single cylinder,4-stroke,gasoline/diesel engine | ||||
| engine type | petrol honda GX160 5.5HP | Petrol Robin EY20 5.0HP | Petrol lifan 5.5hp | petrol robin RB20 5.0HP | Diesel 170F 4.0HP |
| Speed no-load(rpm) | 3600 | ||||
| vibrator head(dynapac/japenese type)mm | 32.38.45.50.60.35.50.70 | ||||
| flexible pipe(m) | 43198 | ||||
| operating weight(kg) | 20.5 | ||||
| shipping weight(kg) | 22 | ||||
| driver shipping size(L*W*H)(cm) | 53*38*53 | ||||
| poker shipping size (L*W*H)cm | 75*75*5.5 | ||||
Match concrete vibrator shaft :
| Item | Concrete vibrator shaft | ||||||
| Model | ¢(mm) | ZX35 | ZX-38 | ZX-45 | ZX-50 | ZX-60 | ZX-70 |
| Diameter of head | ¢(mm) | 35 | 38 | 45 | 50 | 50 | 70 |
| Length of head | L (mm) | 380 | 420 | 420 | 480 | 410 | 450 |
| Vibrating Frequency | (HZ) | 183 | 185 | 185 | 200 | 200 | 200 |
| Vibrating Ampitude | (mm) | 0.91 | 1 | 1.2 | 1.15 | 1.15 | 1.35 |
| Dia of flexiable hose | D(mm) | 30 | 30 | 32 | 36 | 36 | 36 |
| Diaof flexiable shaft | D(mm) | 10 | 10 | 10 | 13 | 13 | 13 |
| Weight (6mtr) | (kg) | 14 | 15 | 16 | 20 | 21 | 24 |
| packing size | CM | 75*75*5.5 | |||||
