Plastic Drums Tanks Bottles Film Recycling Washing Machine with Siemens Motor with Factory Price

Product Description

Applicable Material:
Our versatile recycling technology accommodates a variety of materials including PE/PP Films, industrial films, city garbage film, PP woven bags, and Raffia jumbo bags, making it a top choice for diverse recycling needs.
Introduction

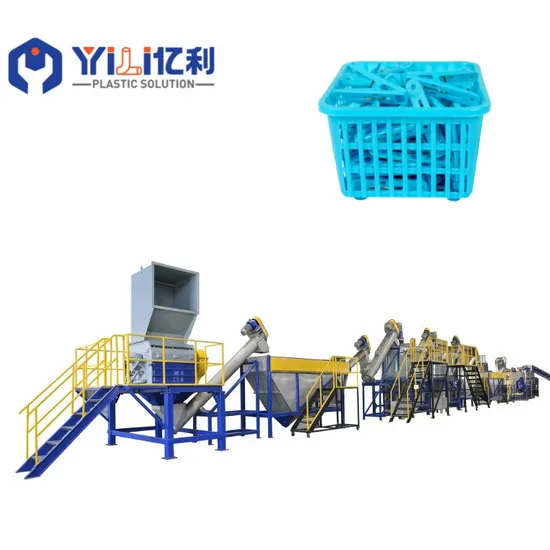

The waste plastic film recycling and washing line produced by YILI Machinery is a game-changing solution designed to handle a wide array of plastic soft materials, such as PE or PP plastic film, PP woven bags, waste agricultural films, waste soft drip irrigation pipes, and industrial packing films. This advanced production line boasts components like shredder, crusher, frication washer, floating tank, and squeezer. With capacities ranging from 300 to 1500 kg/hr, our system guarantees thorough decontamination using both cold and hot washing methods. Employing cutting-edge recycling technologies, it delivers exceptionally clean final products that can be utilized independently or blended for reprocessing, including new film blowing applications.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
QX300	300-400	160	0.5	3
QX500	500-600	200	1.2	3
QX1000	800-1000	250	3	4
QX1500	1300-1500	325	4	4
QX2000	1800-2000	415	4	4

Tech Features & Advantages With automatic control, a streamlined process, and enhanced production efficiency, the entire production line ensures immaculate cleanliness; This sophisticated line effortlessly separates mud, sand, and other impurities from films and bags, ensuring top-notch purity; Equipped with a pre-treatment system, including a pre-washer and label processing, it significantly enhances the quality of the end product, offering unrivaled results; Featuring centrifugal dewatering and squeezing technology for optimal efficiency; The system is designed for easy maintenance, boasts low energy consumption, and promises a long operational life
Main Machines For the line
Belt conveyor

Choose from light and heavy-duty belt conveyors, equipped with a gearbox motor and side walls to prevent material loss. Optional metal detector installation enhances safety and efficiency.
Shredder For large raw materials, like plastic drums or tanks, our shredders offer initial grinding. Post-shredding, a second crushing phase refines materials to less than 12mm, optimizing for pure cleaning. YILI provides a series of shredders with varied capacities and features to cater to customer preferences.
Crusher
Our crushers reduce material size with integrated water cleaning and blade cooling. Large items are transformed into smaller, manageable pieces, enhancing washing results and simplifying packing.
Frication Washer Operating at high speeds with water, the frication washer effectively removes contaminants, dirt, and grease. Post-wash, materials proceed to the floating tank for further purification.
Floating tank
This module efficiently separates sediment and metal from materials. Diverse washing wheel designs ensure functional versatility, with inverter-controlled speed and a magnetic valve for timely dirt discharge. Constructed from high-grade stainless steel.
Centrifugal Dryer Our horizontal centrifugal dryer offers superior drying performance with minimal energy consumption. The self-washing grid mesh and timer settings enhance its dual washing and drying capabilities.
Hot air pipeline heating
