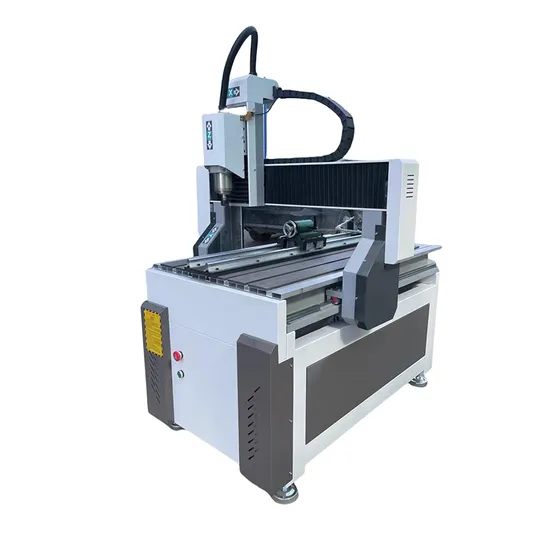

Rubber Acrylic MDF Wood Aluminum Copper CNC Engraving Machine

Product Description

Product Description
1.Adopt high power 1.5KW water cooling spindle,which is suitable for longtime and high temperature working
2.The lathe is founded by high-quality casting iron that ensures the high stability
3.What ball screws ZK use are the Taiwan TBI ball screws with high precision and fast speed
4.Round rail with high accuracy and high efficiency
5.Large compatibility of software such as Type3,artcam and others
6.Our standard controller is Ncstudio,easy to operate(optional:DSP control system)
7.Aluminum T-slot surface with high strength raises stability and longtime working.
Detailed Photos
1.5KW water cooling spindle, can be optional 2.2KW as your requirement

Control cabinet, inside with electric parts, drivers, inverter, etc

BEST brand inverter
If you want to work aluminum , copper, etc soft metal, you need add the water tank for helding water. but if you work wood, acrylic , etc material, then no need it
About controll system, our standard model is with ncstudio control card system, besides, also can be optional Richauto DSP control system, MACH3 control system, etc
Taiwan HIWIN square guide rail, ball screw transmission for three axis
Manual oil lubricating system
Tool box , with keyh tools, cables, control card, collects and cutters, etc
We will send customers 2 collects and 10 pieces cutters as free for testing machine
water pump for cooling spindle (if the spindle is water cooling spindle)
Product Parameters

Model	ZK 6090
XY transmission	ball screw transmission, round guide rails(also can optional square guide rails)
Table size (cm)	60*90
Z transmission	ball screw transmission
Spindle power	1.5KW
Spindle speed (min/max)	6000 - 24000rpm
Power consumption without spindle	More than 1000W
Speed max.	0-100mm/s
Working speed max.	100mm/s
Stepper or servo motor?	Stepper motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XYZ resolution	0,025mm
Table surface	Cast iron table which with water cooling system
Included Software	Type3 or Wentai software
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	water cooling spindle
Tools	10pcs for engraving and cutting
Control system	Ncstudio control system or DSP control system
Software transmission language	G-Code, HPGL
Interface	USB
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	15 working days

Sample photos
wood engraving acrylic engraving and cutting MDF cutgting

optional functions
rotary attachment, if you want engrave 3d column wood

vacuum table, if you want to adsorb the material to the table, can choose this vacuum table with vacuum pump

Richauto A11 DSP control system Mach3 control system if you want this controller Can be optional easy servo moto to instead of stepper motor
Application
Commonly used engraving machines for advertising include chest signs, modeling, steel molds, seal carving, furniture carving, gifts, souvenirs, handicrafts, signs, sign making, hand boards, punching, printing factory knife molds, advertising word cutting, carving advertising lightboxes, etc
Company Profile
Jinan Zhongke CNC Equipment Co., Ltd. is a well-known manufacturer of CNC equipment in China. Mainly engaged in the research and development, production, marketing, and service of carving machines, CNC cutting machines, panel furniture cutting machines, panel furniture production lines, woodworking carving machines, stone carving machines, jade carving machines, olive core carving machines, three-dimensional carving machines, advertising carving machines, plasma cutting machines, CNC carving machines, metal carving machines, high-precision multifunctional carving machines. In the industrial field, we provide CNC processing equipment, services, and customized solutions to customers around the world, realizing potential customer growth and continuously creating long-term value for customers. With the spirit of striving for progress and sharing achievements, as well as the service tenet of ensuring reputation and putting service first, we are steadily moving forward and continuously developing.
As a professional research and development enterprise for CNC equipment in China, we are dedicated to providing customers with excellent after-sales service, including product design, installation, training, and maintenance; Our service tenet is to provide customers with technologically advanced, reliable products and complete technical solutions, and to pursue customer satisfaction.
The company focuses on customer needs and caters to domestic and foreign customers. Based on the pursuit of quality, it can meet the personalized customization and cultural services of customers according to existing technological conditions. It also follows the progress of technology and pursues the improvement of quality. At the same time, it invests in the technology research and development department to develop new products and provide high-quality and advanced CNC engraving equipment to the world.

Packaging & Shipping
Our delivery term: exw, fob, CFR, CIF, DDU, etc
We can ship machine by LCL or FCL, LCL meaning that sharing one container with others goods, FCL, meaning that you use one whole container to ship your own machine
