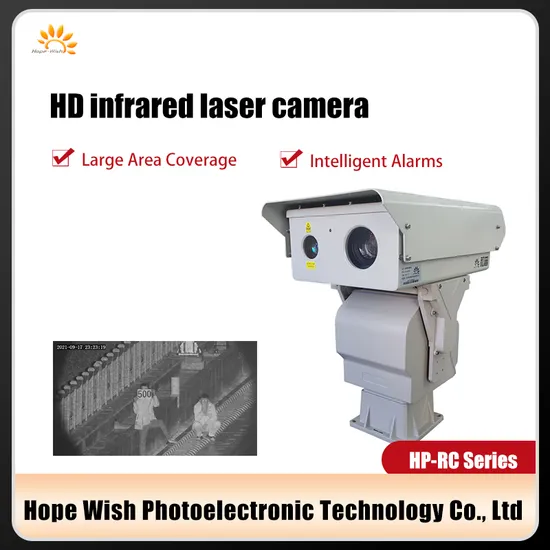

Long Range PTZ Thermal Camera Zoom Infrared Laser Security Camera 5km

Product Description

Product Description
RC20 series long-range HD infrared laser imaging camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 6 km in the day and 3 km in the night

Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
Feature:
1.DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.
2.GHT super homogenizing and power consumption control of NIR laser ensure a better effect.
3.Independent laser photoswitch.
4.360° continuously rotation PT, rotation stably.
5.One integral aluminum alloy housing, IP66 ingress protection, waterproof, dustproof.
Application Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.
Product Parameters

Model	RC2021	RC2030	RC2050	RC2076	RC20100
Detection	Day: 1km;	Day:2km;	Day:3 km;	Day: 5 km;	Day:6 km;
	Night: 500m	Night:1km	Night:1.5km	Night: 2km	Night:3 km
Consumption	6W,808nm, NIR	10W,808nm , NIR	12W,808nm , NIR	15W,808nm , NIR	15W,808nm , NIR
Laser angle	1.5°~20°	1°~20°	0.7°~20°	0.5°~20°	0.3°~20°
Angle and distance matching	DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming
	GHT-II super homogenizing HD illumination technology
	0.01°SLM optical axis aiming and locking
Camera	1/2.8'', 0.005lux high sensitive color to B/W CCD ,2 megapixel		1/1.8'', 0.0002lux high sensitive color to B/W CCD ,2 megapixel
	Automatic ICR switch,H.264 video format		Automatic ICR switch,H.264 video format
Lens	10-210mm HD lens , motorized zoom	12-320mm HD Infrared correction lens , motorized zoom	15-528mm HD lens, infrared correction, motorized zoom	25-750 mm HD lens,2 mega pixels, motorized zoom	20-1000mm HD lens, infrared correction, 2 mega pixels, motorized zoom
Penetrate fog	Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog
Housing	One integral aluminum alloy housing,sealed and waterproof,IP66
Load duty	20kg	30kg		50kg
PT	Pan: 0°~355°	Pan: 360° continuously		Pan: 360°continuously
	tilt: +10°~-70°	Tilt: +40°~-75°		Tilt: +45°~-45°
Rotation speed	Pan: 9°/S	Pan: 0.01~60°/S		Pan: 0.01~30°/S
	Tilt: 4°/S	Tilt: 0.01~30°/S		Tilt: 0.01~15°/S
Preset	50, with patrol and scan function	80, with patrol and scan function
Interface	1*RJ45,1*AC24V
Power supply	AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter
Weatherproof	IP66
Anti-lighting	Power voltage 4000V,communication signal 2000V
Protocol	Pelco-P,Pelco-D and so on standard protocol, baud rate 2400,4800,9600,19200
Operational temp.	-25ºC~+55ºC (-40ºC optional)
Weight	≤30kg			≤40kg

Customer Feedback Company Profile Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
FAQ Q1. Could you provide OEM&ODM service?
Yes, We provide the advanced monitor products, technical solution and professional premium service world-wide, offer OEM&ODM service. Also our R&D team have rich experience in ODM&OEM.
Q2.Do you offer free sample?
A: Yes, we could offer the sample , but need some deposit before shipping.
Q3. Are you manufacturer or treading company?
We are a manufacturer located in Shandong Province, China, you are very welcomed to visit our factory.
Q4. How does you ensure the quality of products
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
Q5.How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
Q6.Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us, reply will be sent to you immediately;
Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
