Automatic Horizontal Surface Grinding Machine Worktable 800X1600

Product Description

Surface Grinding Machine
We adopt tetrafluoraoethylene soft belt on the contact surfaces of worktable and saddle flat guideway. We use conbined guideway structure which I scombined saddle, colum and roller together.
Adop ball screw for ertical movement and head cross movement, the grinding head cross movement is drived by oil motor
Oil pool has equipped with oil colling device

SPECIFICATION		M7180
Size of worktable ( L × W × H )		mm	1250*800*600	1600*800*600	2000 × 800*600	3000*800*600
Max . Longitudinal movement of worktable		mm	1350	1700	2100	3100
Max. Distance from the spindle centerline to the worktable surface		mm	825	825	825	825
Max. Cross movement of grinding head		mm	863	863	863	863

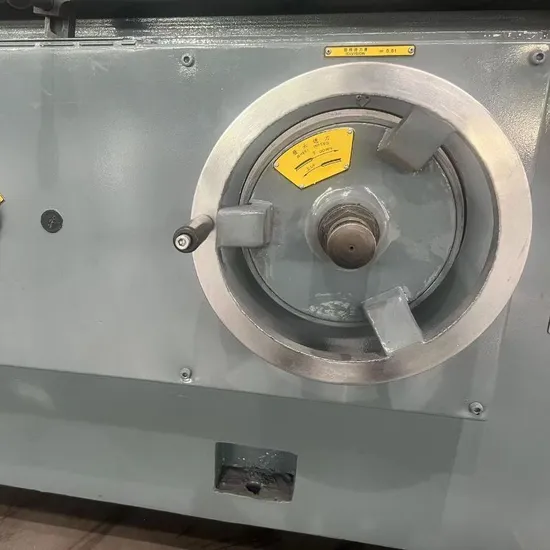

Vertical movement of the grinding head by hand wheel	Per graduation	mm	0.005	0.005	0.005	0.005
	Per revolution	mm	0.5	0.5	0.5	0.5
Rapid lifting motor	Power	KW	0.75	0.75	0.75	0.75
	Speed	r/min	910	910	910	910
Abrasive wheel dim ( D × W × d )		mm	450*63*203	450*63*203	450*63*203	450*63*203
Speed of grindwheel		r/min	1440	1440	1440	1400
Total power of motor		Kw	21	21	23.6	27.6
Power of spindle motor		KW	11	11	11	15
Power of o il pump motor		KW	7	7	8	11
Processing accuracy		mm/mm	3000/0.008	3000/0.008	3000/0.008	3000/0.008
Surface roughness			Ra:0.63	Ra:0.63	Ra:0.63	Ra:0.63
N/G weight		kg	11150/12150	11500/12500	12000/13000	13000/14000
Packing size(LXWXH		mm	6270*2540*2825	6620*2540*2825	7020*2540*2825	8220*2540*2825

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
