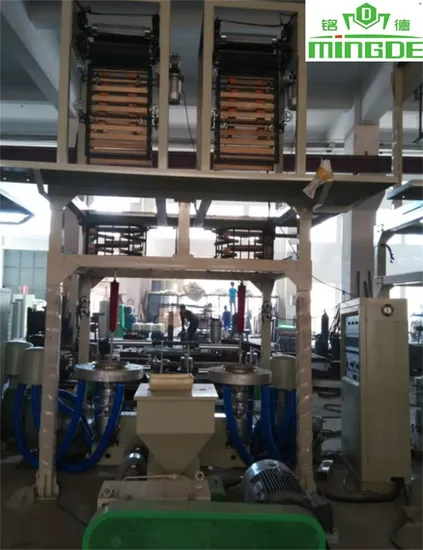

High Speed Single Screw Double-Head Film Blowing Machine

Product Description

Product Description
It is suitable for (HDPE), (LDPE) (LLDPE), which is widely used for packing foodstuff, garment, textile, daily-use articles and industrial products, etc.
1, The machine adopts single screw to extrude the material, two die heads to blow the film.
2, The screw stem and cylinder are made of 38CRMOALA high quality alloy steel after fine finishing and nitride treatment, which has high hardness, strong resistance to corrosion, durable service.
3, The die head is plated with hard chrome, of screw mandrel type structure with even and smooth discharging, the blown plastic film has fine finishing; The blower is of labyrinth structure with even air output.
The coiling unit adopts pressure friction rewinding or center rewinding, which is driven by torque motor, with even and smooth rewinding and easy roll changing.

Model	MD-H2-55	MD-H2-65
Suitable Material	HDPE
Max Film Width(mm)	500×2	600×2
Film Thickness(mm)	HD:0.008-0.08
Max Extrusion Output HD	50kg/hr	70kg/hr
Extrusion unit
Gear Box	173	200
Screw Diameter(mm)	φ55	φ65
Screw L/D Ratio	28:1	28:1
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	250W×2	370W×2
Thermo Control (zone)	3	4
Driving Motor (kw)	22	30
Extrusion Die
Die Size (mm)	HD:φ50/60×2	HD:φ60/80×2
Screen Changer	Standard manual
Thermo Control (zone)	2×2	2×2
Air Ring (mm)	φ620×2	φ620×2
Cooling Blower (kw)	1.5	2.2
Center Steady Stick	2 PCS
Take-UP Unit
Roller Width (mm)	φ138×550	φ138×650
Embossing Roller Width	450mm	550mm
Take-UP Motor (kw)	0.75×2	1.1×2
Take-UP Speed(M/min)	10-60	10-60
Height adjustable type	700mm
Winding Unit
Type OF Winder	Surface Friction Winder
Roller Width (mm)	600	700
Winding Motor (N.M)	6	6
Winding Speed(M/min)	10-60	10-60
Voltage	380V, 50HZ, 3PHASE
Cover Dimensions (m)	5×3.2×4.3	5.5×3.4×4.3

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.
FAQ
1.Trade company or manufacture?
we are a manufacture of plastic machinery such as: film blowing machine, printing machine ,bag making machine and recycling machine.
2.How to visit our factory?
Some lines you can choose. First, you can come to guangzhou air port, then by air to wenzhou air port, call us we can go whenzhou air port to pick up you.
Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train Ruian station then we go air port or train station to pick up you.
3.What about the warranty?
All our machine have one year warranty. if the machine parts broken because the quality problem, we can provide the spares for you by free.
4.What about the traning?
We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operation.
we also can send engineer to your factory ,teach your workers how to run the machine. but you need pay all the fees including: round tickets , food and living.
5.About the machine shipping?
Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.
6.About the machine packing?
Our machine normal use the plastic packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.
