Q13 Series Pipe Threading Lathe

Q13 Series Pipe Threading Lathe

US$20,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Q1322C/3000
Processing Accessory
oil pipe
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max dia Swing Over Bed
630/800mm
Max length of workpiece
3000mm
Max dia swing over cross slide
550mm
Max. loading weight
3T
Transport Package
Iron Pallet
Specification
Q1322C/3000
Trademark
HAVEN
Origin
China
HS Code
84581900
Production Capacity
15units/Month

Product Description

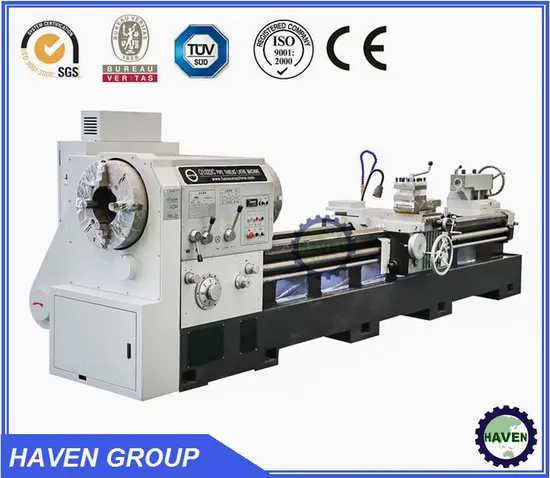

Q13 Series Oil pipe threading lathe
Main feature:
Hollow spindle bore design allows processing extra-long work-piece
Double chuck equipment realizing better clamping of work-piece
Taper guide bar installed ensures taper thread processing ability
Standard accessories: 2 PCS chuck;Work lamp ;Coolant system;Morse 6# center ;
Foundation bolts ;Tools and tool box;English manual ;Taper turning attachment
Main specification:
Specification Unit Q1319C Q1322C Q1325C Q1327C
Swing over bed mm Φ630/800 Φ630/800 Φ800 Φ800
Swing over cross slide mm Φ340/520 Φ340/520 Φ480 Φ480
Guide way width mm 550 550 600 600
Max. load capacity T 3 3 4 4
Spindle bore mm Φ206 Φ225 Φ255 Φ280
Pipe threading range mm Φ50-193 Φ50-220 Φ50-250 Φ50-270
Distance between centers mm 1500/3000 1500/3000 1500/3000 1500/3000
Spindle speed steps - VF. 4 steps VF. 4 steps VF. 4 steps VF. 4 steps
Spindle speed range rpm 20-550 20-420
Chuck mm Φ 520 4-jaw manual Φ 630 4-jaw manual
Turret/tool post - Manual 4 position Manual 4 position
Tool shank size mm 32X32 32X32 32X32 32X32
X axis travel mm 320/420 320/420 420 420
Z axis travel mm 1350/2850 1350/2850 1250/2750 1250/2750
X axis feed grade/range mm/r 22/0.02-0.45 22/0.02-0.45 22/0.02-0.45 22/0.02-0.45
Z axis feed grade/range mm/r 26/0.07-1.33 26/0.07-1.33 26/0.07-1.33 26/0.07-1.33
X axis rapid traverse mm/min 2300 2300 2300 2300
2 axis rapid traverse mm/min 4000 4000 4000 4000
Metric thread grade/range mm 22/1-15 22/1-15 22/1-15 22/1-15
Inch thread grade range T.P.I 26/14-1 26/14-1 26/14-1 26/14-1
Tailstock quill diameter mm Φ100 Φ100 Φ120 Φ120
Tailstock quill taper - MT5 MT5 MT6 MT6
Tailstock quill travel mm 250 250 250 250
Main spindle motor kw 11 11 15 15
Rapid traverse motor kw 0.3 0.3 1.1 1.1
Machine width x height mm 1550x1550 1650x1550 1700x1600 1700x1600
Machine length mm 3700/5200 3700/5200 4100/5600 4100/5600
Net. weight T 4.3/5.5 4.5/5.7 8.0/9.0 8.0/9.0

Unit Q1327 Q1332 Q1338 Q1343 Q1350
Swing over bed mm 1000 1000 1000 1000 1200
Swing over cross slide mm 610 610 610 610 710
Distance between centers mm 1500/3000
Pipe threading range mm 130-270 190-320 190-380 270-430 330-510
Guideway width mm 755 755 755 755 755
Max. load capacity T 6 6 6 6 6
Spindle bore mm 280 330 390 440 520
Spindle speed steps - FWD. 12 steps FWD. 9 steps FWD. 9 steps FWD. 9 steps FWD. 9 steps
Spindle speed range rpm 16-380 7.5-280 6-205 4.9-180 4.9-180
Chuck type - 4-jaw manual 4-jaw electric 4-jaw electric 4-jaw electric 4-jaw electric
Chuck diameter mm 800 780 850 1000 1000
Turret/tool post - Manual 4 position
Tool shank size mm 45 x 45 45 x 45 45 x 45 45 x 45 45 x 45
X axis travel mm 520 520 520 520 520
Z axis travel mm 1350/2850
X axis feed grade/range mm/r 40/0.05-1.5 32/0.05-0.75 32/0.05-0.75 32/0.05-0.75 32/0.05-0.75
Z axis feed grade/range mm/r 40/0.1-3 32/0.1-1.5 32/0.1-1.5 32/0.1-1.5 32/0.1-1.5
X axis rapid traverse mm/min 1870 1870 1870 1870 1870
Z axis rapid traverse mm/min 3740 3740 3740 3740 3740
Metric thread grade/range mm 30/1-30 23/1-15 23/1-15 23/1-15 23/1-15
Inch thread grade/range T.P.I 27/28-1 22/28-2 22/28-2 22/28-2 22/28-2
Tailstock quill diameter mm φ160 φ160 φ160 φ160 φ160
Tailstock quill taper - MT6 MT6 MT6 MT6 MT6
Tailstock quill travel mm 300 300 300 300 300
Main spindle motor kW 22 22 22 22 22
Rapid traverse motor kW 1.5 1.5 1.5 1.5 1.5
Width x Height mm 2100 x 1600 2100 x 1650 2100 x 1700 2100 x 1700 2100 x 1850
Length mm 4800/6300 4900/6400 4900/6400 5000/6500 5000/6500
Net weight T 10.0/11.5 11.5/13.0 12.8/14.3 13.0/14.5 15.0/16.5
