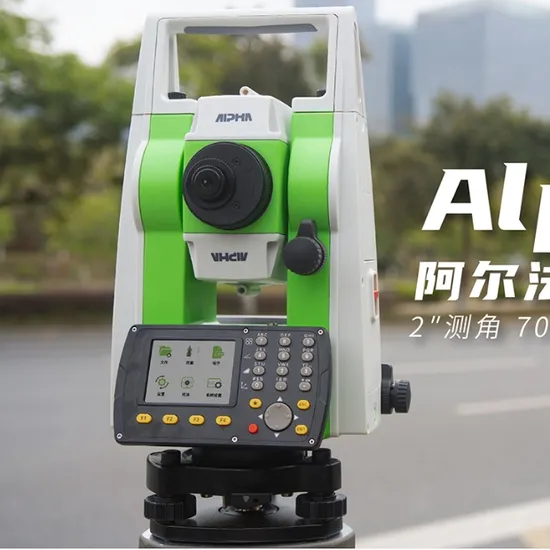

Color Screen Total Station Alpha Te Absolute Encoding

Product Description

Alpha Te Project total station 2 seconds accuracy 700 meters without prism color screen built-in Bluetooth
Place of Origin: China
Brand Name: Alpha
Model Number:
Alpha Te
Distance accuracy:
± 2mm
Alpha Te project full station, using the optical technology from Europe and the new hardware architecture, the new generation of absolute coding dial, bring high quality, high precision, high stability of excellent performance.2 " Stable Angle measurement accuracy, prism-free measurement range up to 700m, suitable for all kinds of engineering survey.
700m-free prism
Practical and accurate prism-free ranging, to meet the needs of engineering measurement.
Bluetooth connection
Built-in low power Bluetooth, can connect to the surveyor extension function.
One key touch
Touch and test, to avoid the key shake interference measurement.
2"Stabilize angle measurement accuracy
absolute Coding the disk technology, stable 2 " angular measurement accuracy.
A 2.8-inch HD color screen
Equipped with high-end full station of the large size color screen, clear and colorful display.
Liquid double axis compensation
4'compensation range, fast and stable, improve the operation efficiency.
2 " Angle measurement accuracy
Excellent Angle measurement technology
Alpha Te is based on proprietary absolute coding dial technology, which can achieve 2 second angle measurement accuracy; high precision angle measurement and anti-pollution technology complex operation scenarios can ensure stable output.
700m without prism ranging
Advanced phase laser ranging technology, the machine contains five adaptive accurate ruler automatic switching to achieve accurate ranging, with 2 + 2ppm ranging accuracy and 700m prism free ranging distance, enough to meet the needs of engineering measurement of various scenarios.
Prism-free distance measurement:
700 meters
Prism range-ranging:
4,000 m
30X ortholike HD objective
Alpha Te uses multi-layer nano-coating technology to bring good light resistance performance and clear and bright vision, with a clearer view and more accurate illumination.
Photoelectric integrated compensator
Improve work efficiency
Alpha photoelectric integrated compensator provides a compensation range of up to 4 ', which can start the measurement, reducing the time of leveling and improving the operation efficiency.
Fast and stable, real-time feedback
The alpha compensator adopts the advanced two-axis integrated design. After the instrument rotates, the compensator can be stable in a short time and feedback the compensation results in real time.
2.8 Inch color screen
Alpha Te is equipped with a high-end full station 2.8-inch HD color screen, with a larger screen and a richer display and a more comfortable look.
Fast brake wrench
Alpha Te is equipped with a self-developed, highly praised fast brake wrench, ergonomic designed to quickly lock / unlock the rotating shaft with a single pull.
Low-power Bluetooth 5.0
It can expand the measurement function of connecting with the mobile phone APP
One key touch
Alpha Te is equipped with the one-button touch button of the high-end full station on the side of the body. Through the capacitive touch principle, the measurement can be completed only with the slight touch of the finger: avoid the measurement error caused by the rotation of the instrument caused by the button.
Airborne measurement software
Alpha Te has a variety of engineering measurement software, which can meet the needs of various high-precision measurement operations.
Third-party APP support
Alpha Te supports connectivity to third-party software such as surveyors via Bluetooth. Mobile phone with the operation, to achieve the project full station enjoys the function of intelligent full station.
Alpha manufacturing
The Alpha technology system has a profound heritage and inheritance. The r & D team has comprehensive technology, in optics, machinery, photoelectric, satellite positioning, industrial control and other fields, familiar with international high-end manufacturing production process and quality control, with full r & d capabilities and experience to serve domestic and foreign customers.
Configuration list
Host * 1
Battery * 1
Charger * 1
Toolbag * 1
Introduction Manual * 1
Warranty card * 1
Certificate * 1
U disk * 1
RP60 reflector piece * 1
RP30 reflector piece * 1
Objective mirror cover * 1
