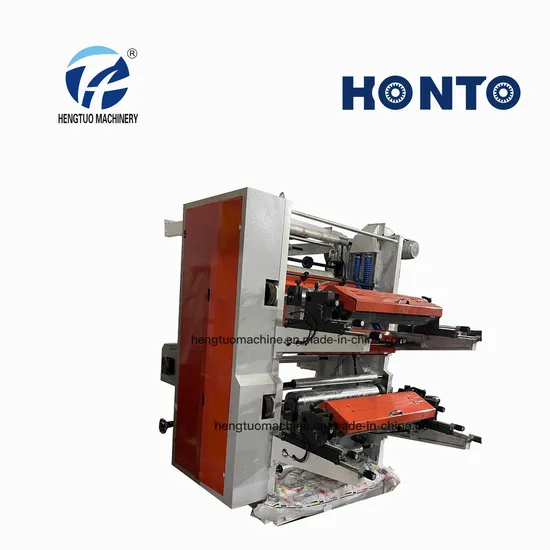

2 Colors Stack Type Roll to Roll Plastic Film Flexo Printing Machine
| US$3,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HT-2600
Printing Page
Single Faced
Printing Color
4 Colors
Anilox Roller
Metal Anilox Roller
Dryer
IR
Type
Ink Jet
Embossing Structure
Platen Press
Structure
Unit Type
Application
Flexible Packaging Printing
Automatic Grade
Semi-Automatic
Printing Speed
60m/min
Tape Frame
Available
Folding Frame
One.Optional Additional One
Optional Device
Tension Controller
Optional
EPC
Transport Package
Wooden Case or Wrapped with Plastic Film
Specification
4*2.5*2.2m
Trademark
Hengtuo
Origin
Ruian Zhejiang China
HS Code
84778000
Production Capacity
100
Packaging & Delivery
Package Size
220.00cm * 150.00cm * 220.00cm
Package Gross Weight
800.000kg
Product Description
UseThis machine is suitable for various materials roll to roll printing, like various paper, film(BOPP,PET,PE,OPP,PP,CPP), non woven fabric, pp woven sack,self-adhesive labels, paper cups, foils, etc.
Easy operation, flexible starting, accurate color register. Machine is with meter counter. Working meter can be preset, machine will stop when reached the preset length or the material is cut off
| model | Printing color | Printing width | Printing length | Printing speed | Thickness of plate | dimension |
| HT-YT2600 | 2 | 560mm | 300-1200mm | 5-50m/min | 2.28mm | 2.3*1.6*2.2 |
| HT-YT2800 | 2 | 760mm | 300-1200mm | 5-50m/min | 2.28mm | 2.3*1.8*2.2 |
| HT-YT21000 | 2 | 960mm | 300-1200mm | 5-50m/min | 2.28mm | 2.3*2.0*2.2 |
| HT-YT4600 | 4 | 560mm | 300-1200mm | 5-50m/min | 2.28mm | 4.8*1.6*2.2+0.55 |
| HT-YT4800 | 4 | 760mm | 300-1200mm | 5-50m/min | 2.28mm | 4.8*1.8*2.2+0.55 |
| HT-YT41000 | 4 | 960mm | 300-1200mm | 5-50m/min | 2.28mm | 4.8*2.0*2.2+0.55 |
| HT-YT6600 | 6 | 560mm | 300-1200mm | 5-50m/min | 2.28mm | 4.8*1.6*2.55+0.55 |
| HT-YT6800 | 6 | 760mm | 300-1200mm | 5-50m/min | 2.28mm | 4.8*1.8*2.55+0.55 |
| HT-YT61000 | 6 | 960mm | 300-1200mm | 5-50m/min | 2.28mm | 4.8*2.0*2.55+0.55 |
Company Information
RUIAN HENGTUO MACHINERY CO.,LTD. located in Ruian City, Zhejiang Province,China.is an innovative enterprise which integrates packaging machinery with professional scientific research and development, design and manufacturer, sales and after-sales service.
Main products: Stretch film machine, bubble film making machine, compound bubble film making machine, film blowing machine, printing machine, bag making machine , plastic recycling machine, etc.
Packaging & Shipping
1. Within 15-25 workding days after receipt of deposit.
2. Stretch film packing, easy damage part put in wooden box.
3. By sea.
